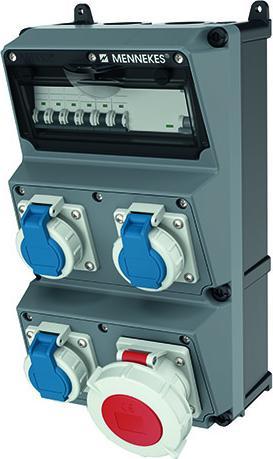

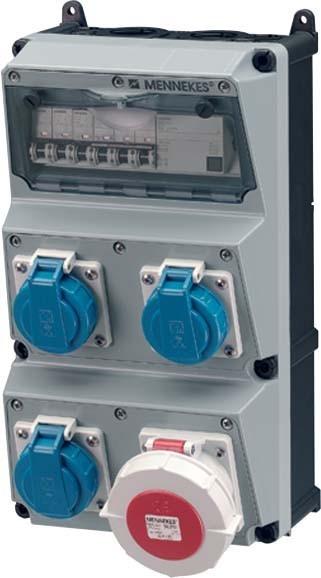

Mennekes MEN 930028 Socket outlet combination AMAXX
3 x, CEE 32/5Product details
Combine instead of installing individually. Many single sockets with separate wiring are expensive, impractical, and increase fire load. With AMAXX, you can combine smartly and save valuable installation time. Why? Only one supply line, fewer drill holes, fewer cable and pipe clamps, and just one housing, whose external fastening allows for one-person installation. The hinged, side-opening housing cover, as well as the retractable hat profile rails and the large connection space, facilitate the connection work. AMAXX comes pre-wired and ready for connection, tested for electrical safety and quality according to IEC 61439. Due to its high chemical resistance, heat-resistant carriers, and nickel-plated contacts, this combination is particularly suitable for use in aggressive environments, such as those commonly found in food processing plants, slaughterhouses, and agricultural operations. Additional advantages include the generally angled plug direction for easier handling when plugging and unplugging, the transparent operating window for modular devices (if available) with a locking closure, several different pre-shaped cable entry options, and the captive cover screws for quick opening and closing of the housing. High impact resistance and dimensional stability in cold and heat, as well as the reduction of hazards in case of fire through self-extinguishing material, characterize our AMAXX product line. Applications: everywhere you want to excel not only technically but also aesthetically. Do you also want to combine data technology instead of installing it individually, need a solution for a narrow niche, want to have a mobile unit always at hand, or even install a suspended solution? Our AMAXX product family offers a variety of solution options. Talk to your consultant.
Number of power sockets | 3 x |
Circuit breaker type | Miniature circuit-breaker/residual current circuit-breaker combination |
Protection type (IP code) | IP67 |
Item number | 32108160 |
Manufacturer | Mennekes |
Category | Power distributors |
Manufacturer no. | 930028 |
Release date | 16.11.2022 |
Colour | Grey |
Exact colour description | Grey |
Material group | Plastic |
Material | Plastic |
mounting type | Wall-mounted |
Area of use | Inside |
Number of power sockets | 3 x |
Socket type | CEE 32/5 |
Circuit breaker type | Miniature circuit-breaker/residual current circuit-breaker combination |
Protection type (IP code) | IP67 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Width | 24 cm |
Length | 26 cm |
Height | 45 cm |
