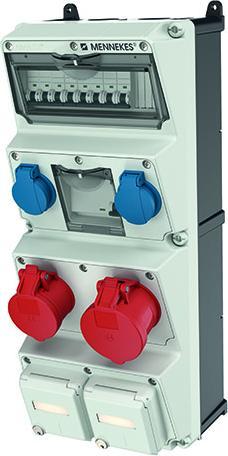

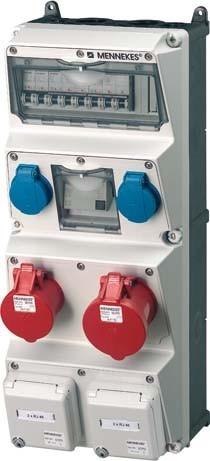

Mennekes MEN 940018 AMAXX socket outlet combination 550x225mm

2 x, CEE 7/3
Price in EUR including VAT
Delivered between Sat, 18.10. and Sat, 25.10.
free shipping

Product details

Combine instead of installing separately. Many individual sockets with separate wiring are expensive, impractical, and increase fire load. With AMAXX, you combine cleverly and save valuable installation time. Why? Only one power supply, fewer drill holes, fewer cable and pipe clamps, and just one housing, whose external fastening allows for one-person installation. The hinged, side-opening housing cover, along with the extendable hat profile rails and the large connection space, make connection work easier. AMAXX is pre-wired and ready for connection, tested for electrical safety and quality according to IEC 61439. Additional advantages include the generally angled socket direction for easier handling when plugging and unplugging, the transparent operating window for modular devices (if available) with a locking closure, several different pre-formed cable entry options, and the captive cover screws for quick opening and closing of the housing. High impact resistance and shape retention in cold and heat, as well as the reduction of hazards in case of fire through self-extinguishing materials, characterize our AMAXX product line. Applications: anywhere you want to score not only technically but also visually. Do you also want to combine data technology instead of installing it separately, need a solution for a narrow niche, want to have a mobile unit always within reach, or even install a suspended solution? Our AMAXX product family offers a variety of solution options. Talk to your consultant.

Key specifications

Nominal current
32 Ah
input voltage
400 V
Output voltage
400 V
Number of power sockets
2 x
Circuit breaker type
Miniature circuit breaker
Protection type (IP code)
IP44
Site power distributor type
Site power distributor
Item number
32107709

General information

Manufacturer
Mennekes
Category
Power distributors
Manufacturer no.
940018
Release date
16.11.2022

Colour

Colour
BlueRedWhite
Exact colour description
BlueRedWhite

Material

Material group
Plastic
Material
Plastic

Mobile power distributor features

Site power distributor type
Site power distributor
mounting type
Screw holder
Nominal current
32 Ah
input voltage
400 V
Plug type
CEE 32/5
Area of use
Inside
Output voltage
400 V
Number of power sockets
2 x
Socket type
CEE 7/3
Circuit breaker type
Miniature circuit breaker
Protection type (IP code)
IP44

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Width
22.50 cm
Length
23.10 cm
Height
52 cm
Weight
7400 g
