Mennekes Mounting box
Product details

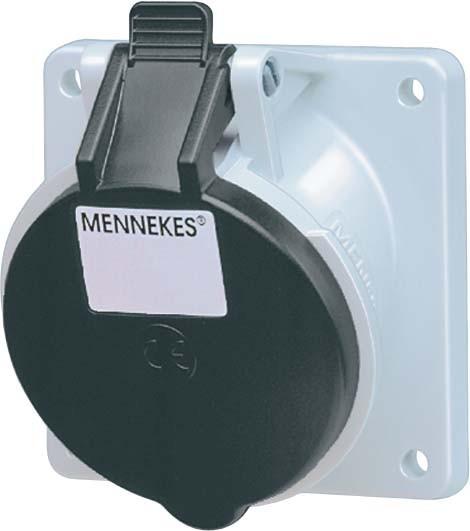

Mennekes panel-mounting box angled 3023 Manufacturer :Mennekes Designation :panel-mounting box angled 16A,7p,7h,500V,IP44 Type :3023 IEC current rating :16 A UL/CSA current rating (if UL version required) :20 A Voltage according to EN 60309-2 :500 V (50+60 Hz) black Rated voltage :499..500 V Rated frequency :50...60 Hz Number of poles :7 Time position :7 h Identification colour :black Protection class (IP) :IP44 Connection system :screw terminal Plug-in direction :angled Cable entry :other Material :plastic Contact material :CuSn Surface treatment Contacts :untreated Military version :no Flange dimension vertical :85 mm Drill hole spacing vertical :70 mm Flange dimension horizontal :85 mm Drill hole spacing horizontal :70 mm Mennekes panel mounting box angled 3023: further details 16A7P 7H500V Panel mounting box angled, IP 44 FL. 85 x 85 mm BL. 70 x 70 mm , EAN: 4015394220596.
Number of cans | 1 x |
Socket type | CEE 7/7 |
Area of use | Inside |
Exact colour description | Black |
Mounting type | Stand-alone |
Item number | 36769656 |
Colour | Black |
Exact colour description | Black |
Material group | Plastic |
Material | Plastic |
Socket type | CEE 7/7 |
Number of cans | 1 x |
Protection type (IP code) | IP44 |
Nominal current | 16 Ah |
Nominal voltage | 500 V |
Area of use | Inside |
Mounting type | Stand-alone |
Mounting type | Screw fastening |
connector type | Screw terminals |
Smart Home | Not compatible |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Stack depth | 7 cm |
Length | 7 cm |
Width | 8.50 cm |
Height | 8.50 cm |
Product Safety |
