Metz Connect Connection Box E-DATC6 8/8(8)UPrws

Manufacturer: Metz Connect
Description: Connection Box
Type: E-DATC6 8/8(8)UPrws
Surface Mounting: No
Flush Mounting: Yes
Channel Installation: Yes
Floor Box/Underfloor Mounting: No
Mounting Method: Screws
Composition: Base element with full cover plate
Connector Type: 2x RJ45 8(8)
With Sockets/Couplings: Yes
Suitable for Number of Sockets/Couplings: 2
Category: 6
Color: Pure White
RAL Number: 9010
Connection Type: LSA
Shielded Sockets: Yes
Shielded Housing: Yes
Separate Grounding Connection: Yes
With Text Field: Yes
Design Capable: Yes
Separate Cable Strain Relief: Yes
Mounting Method Shield Connection: Screw
Outlet Direction: Angled
With Dust Protection: Yes
Mechanical Coding: No
Color Coding: Yes

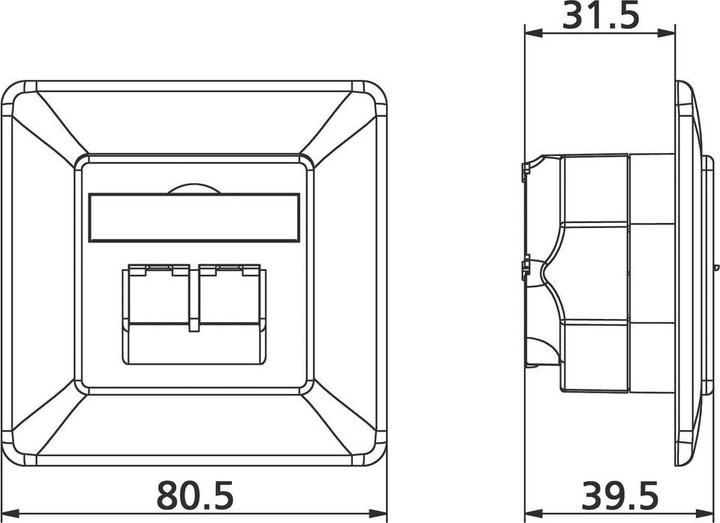

Device Width: 80.5 mm
Device Height: 80.5 mm
Device Depth: 39.5 mm

Metz Connect Connection Box E-DATC6 8/8(8)UPrws: Additional Details

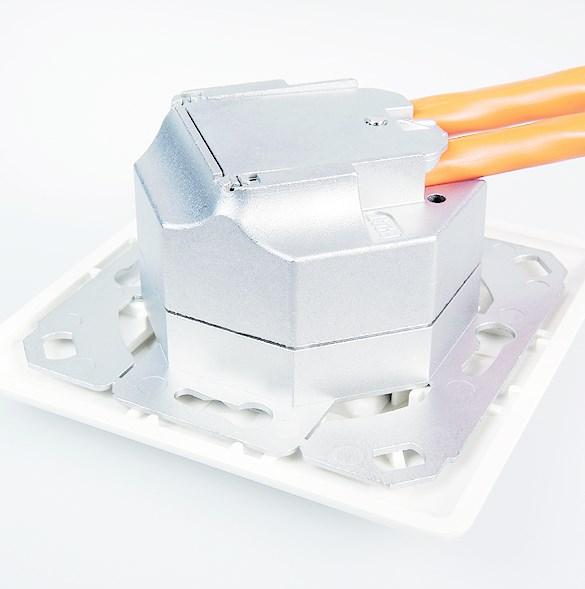

Compact connection box for building a passive network infrastructure with the highest quality standards. The connection box is suitable for connecting phones as well as 10 Gbit networks and power supply with PoE up to 90W. The very robust zinc die-cast connection box can be easily and quickly connected by the installer using an LSA installation tool without errors. In addition to continuous quality control during manufacturing, independent testing laboratories confirm the very good quality with various certificates. The connection boxes are delivered in retail-friendly, separable cardboard packaging, with 10 pieces each. Variants, Mounting Type: Surface Mount (AP), Flush Mount (UP), Flush Mount with Cable Management (UPk), Flush Mount (UP0), Variants, Number of Ports: 1, 2.
