Niedax tensioning claw SPKM 25 F

Manufacturer: Niedax
Designation: Tensioning claw
Type: SPKM 25 F
Suitable for: C-profile
Design: Other
With screw accessories: Yes
Material: Steel
Material grade: Other
Surface protection: Hot-dip galvanised

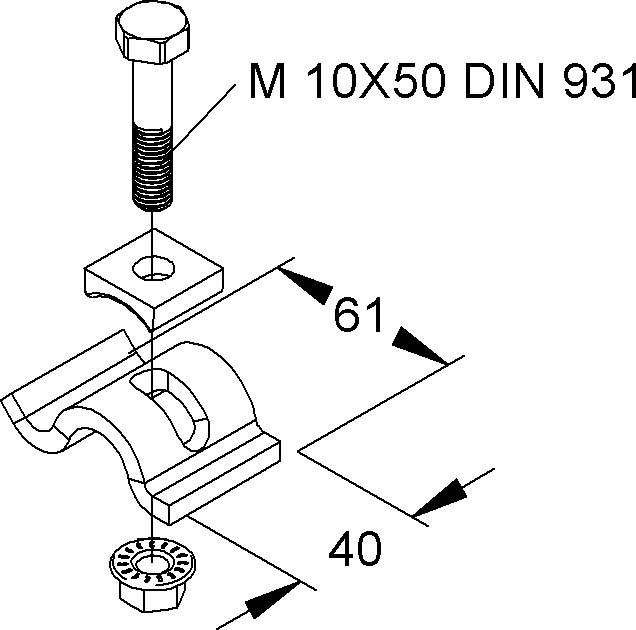

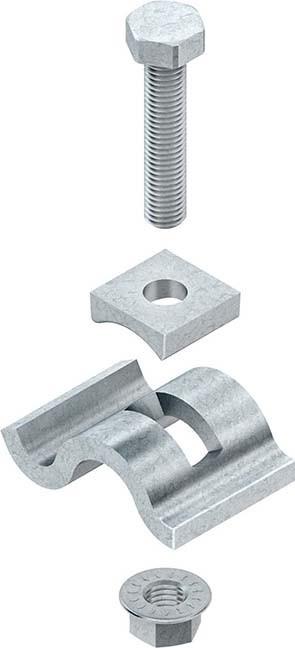

Niedax tensioning claw SPKM 25 F is complete with a hexagon head screw SK 10X50 DIN 931 and a flange nut M 10, designed for fastening suspensions to double T support profiles. It is suitable for suspension rods HU 6040/... as well as head plates belonging to the system.

Dimensions (approx.):
Flange width of T-beam: 120 mm
For direct suspension of hanging rods and associated head plates for flange thickness of T-beam t: 0 - 14 mm
Load capacity F: 10 kN
Screw tightening torque: 46 Nm
Material: Steel, hot-dip galvanised according to DIN EN ISO 1461
EAN: 4013339931040.
