Niedax GK lower part DKU 170-78T90 VW

Manufacturer: Niedax
Designation: GK lower part
Dimensions: 170 x 90 x 2000 mm
Type: DKU 170-78T90 VW

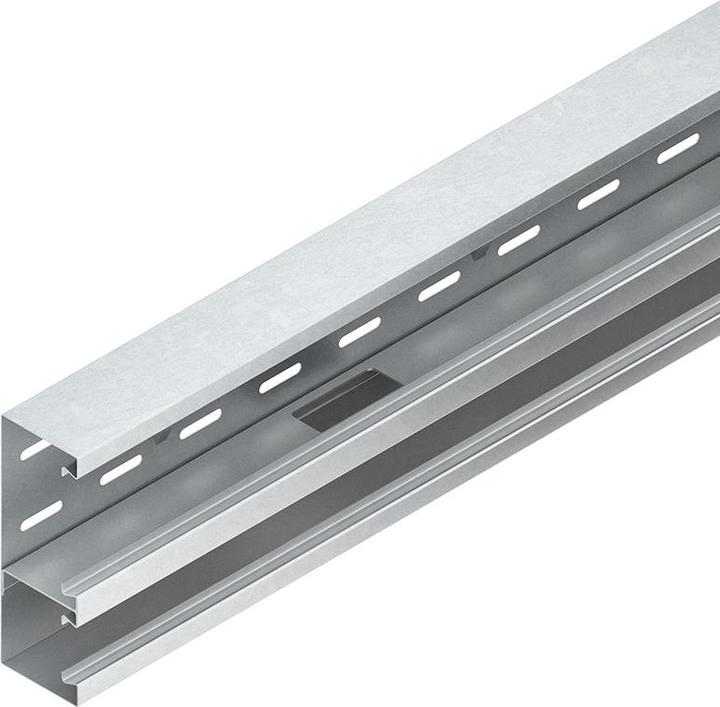

Further details: This device trunking base is double asymmetrical, featuring loops and rear fixing holes for flexible mounting on a wall or wall bracket. It includes two self-contacting aluminium separating profiles with retrofittable cable entry openings, allowing for separate cable runs of different sizes. The continuous loops accommodate separating profiles at the back, with visible surfaces electrostatically powder-coated in RAL colour according to the manufacturer's catalogue.

Device mounting occurs in the upper cable run with a snap-in device box for installation programs, using an 80 mm cover frame and 60 mm fixing track. Device installation does not require perforated panels and includes three cable retaining clips (GKF 78 and GKF 38), each with a delivery length of 2 m. For equipotential bonding, two joint connectors (GSVA) per joint must be ordered separately.

VDE certified! When mounting, ensure that the loop openings point upwards. To achieve a tight fit of the cover, the cable retaining clips must be inserted at intervals of 0.6 m - 0.7 m in the trunking base.

Dimensions (approx.):
Height (H) x Depth (D): 170 x 90 mm
Cover opening: 78 mm and 38 mm
Pitch of cable runs: 105 mm and 65 mm
Double row horizontal back perforation: 7 x 33 mm
Central hole spacing: 62.5 mm
Row spacing: 48 mm
Loop spacing grid dimension: 250 mm
Separating profile cable entry opening: 30 mm x 65 mm
Central spacing: 500 mm
Delivery length (L): 2000 mm
Usable cross-section total: 13260 mm²
Usable cross-section upper cable run: 8292 mm²
Usable cross-section lower cable run: 4968 mm²

Colour: Traffic white RAL 9016 (similar)
Material: Steel, strip galvanised according to DIN EN 10346
EAN: 4013339204991.
