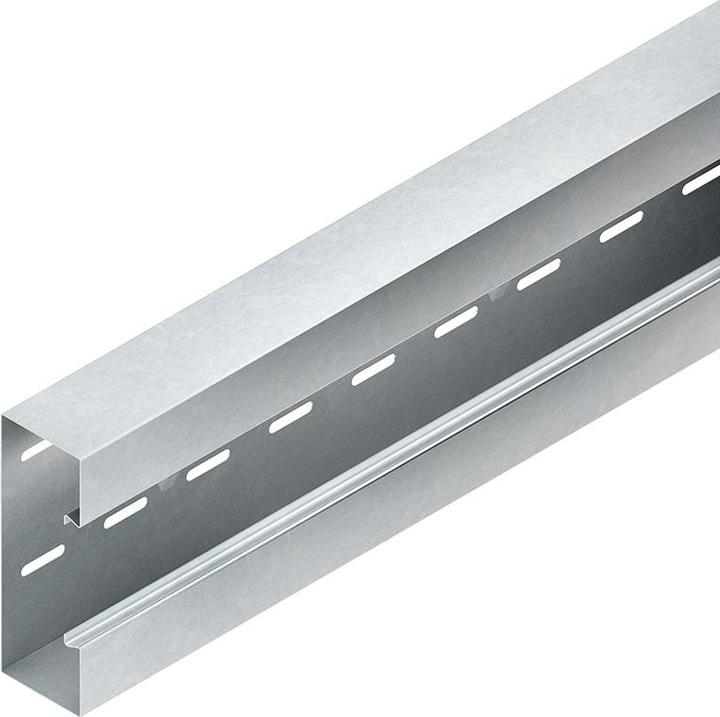

Device channel base, single-compartment symmetrical, with loops and rear mounting holes for flexible installation on walls or wall consoles. Continuous loops for accommodating separation profiles at the back. Device installation in the cable route with a snap-in device box for installation programs with 80 mm cover frames and 60 mm mounting track. Device installation without hole covers, including 3 cable retaining clips GKF 78 for every 2 m delivery length. For potential equalization, two joint connectors GSVA per joint, please order separately. VDE certified! During installation, it is important to ensure that the loop openings face upwards. To achieve a secure fit of the cover, the cable retaining clips GKF must be installed at intervals of 0.6 m - 0.7 m in the channel base.

Dimensions (approx. measurements):
Height H x Depth T: 170 x 70 mm
Cover opening: 78 mm
Two-row horizontal rear hole spacing: 7 x 33 mm
Center hole spacing: 62.5 mm
Row spacing: 75 mm
Vertical rear hole spacing: 7 x 33 mm
Center hole spacing: 500 mm
Loop spacing grid dimension: 250 mm
Delivery length L: 2000 mm
Usable cross-section: 10652 mm²
Material: Steel, strip galvanized according to DIN EN 10346.
