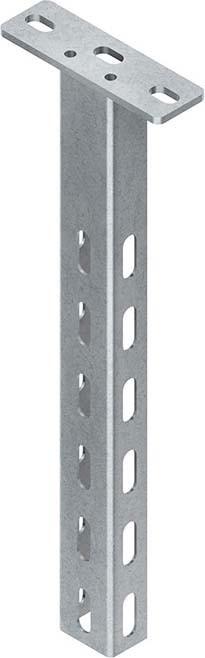

Niedax Hanging Profile, U-Profile HU 4530/300 FL

Manufacturer: Niedax
Description: Hanging profile, U-Profile 43.5 x 29.5 x 301 mm
Type: HU 4530/300 FL
Length: 301 mm
Profile Width: 30 mm
Profile Height: 45 mm
Design: U-Profile
Load Capacity: 2 kN
Suitable for Function Maintenance: no
Material: Steel
Stainless Steel, Pickled: no
Material Quality: other
Surface Protection: Hot-dip galvanized
Weight: 0.62248 kg

Further Details:
Hanging profile, 3-sided perforated U-profile with welded head plate, System HU 4530, for brackets for one-sided, two-sided, and three-sided installation. To prevent deformation of the hanging profile during the installation of brackets, the hanging profile spacer HDS 45.30 F with hexagon screw must be considered for static reasons. When securing the bracket to the hanging profile on one side, the closed side of the bracket should preferably be aligned with the profile web of the hanging profile. For static reasons and to allow for easy placement of the protective cap, the bracket must be installed 50 mm (bottom of the bracket to the end of the hanging profile) above the end of the hanging profile.

For Brackets: KTAL... KTAM... = 400 mm, KTA... = 400 mm

Dimensions (approx. measurements):
Head Plate L x W x t: 130 x 40 x 5 mm
Mounting Hole: 11 x 20 mm
Center Distance: 100 mm
Head Plate Hole Centered: 11 x 20 mm, 15 mm from the edge
U-Profile: 43.5 x 29.5 x 29.5 mm
Material Thickness t: 2 mm
Distance from three-sided profile hole to head plate: 123 mm
Three-sided profile hole, single row: 11 x 30 mm
Center Distance: 50 mm
Total Length L: 301 mm
Material: Steel, hot-dip galvanized according to DIN EN ISO 1461
EAN: 4013339164844.
