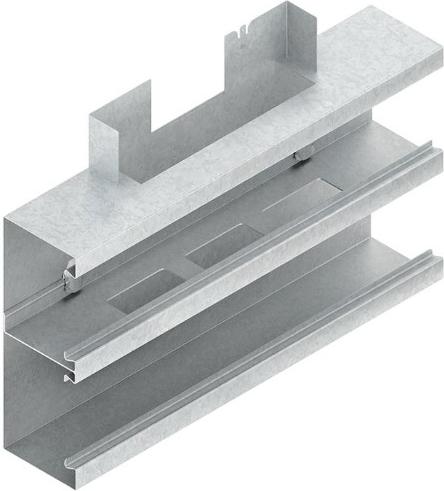

Niedax DKU-T Piece DKT 220-78T60 R

Manufacturer: Niedax
Designation: DKU-T Piece
Type: DKT 220-78T60 R
Width: 220 mm
Depth: 61 mm
Branch Width: 220 mm
Number of Upper Parts: 2
Upper Part Width 1: 78 mm
Upper Part Width 2: 78 mm
Upper Part Width 3: 0 mm
Symmetrical: yes
Design: Lower Part
Material: Steel
Material Quality: Other
Halogen-Free: yes
Antibacterial Treatment: no
Surface Protection: band galvanized and coated
Color: white
RAL Number: 9010
With Protective Film: yes
With Channel Connector: no
Mounting Hole in the Bottom: no
Mounting Type of Upper Parts: recessed
With Cable Retaining Clip: no
Protection Class (IP): IP20
Operating Temperature: -5 to 60 °C

Niedax DKU-T Piece DKT 220-78T60 R: Additional Details
Double-sided T-piece 90°, made of band galvanized steel according to DIN EN 10346, visible surfaces in RAL color shade according to manufacturer catalog electrostatically powder-coated, without bottom flanges for the reception of separating partitions, with two equally sized cable runs separated by a subsequently mountable, self-contacting separating profile made of aluminum with cable entry openings. The potential equalization is carried out via the potential equalization line GSLH and the joint connector DSTA or the potential equalization terminal GPK 63, when these are electrically connected to the channel base. Accessories for potential equalization must be ordered separately. Continuous channel height = outgoing channel height! VDE certified!

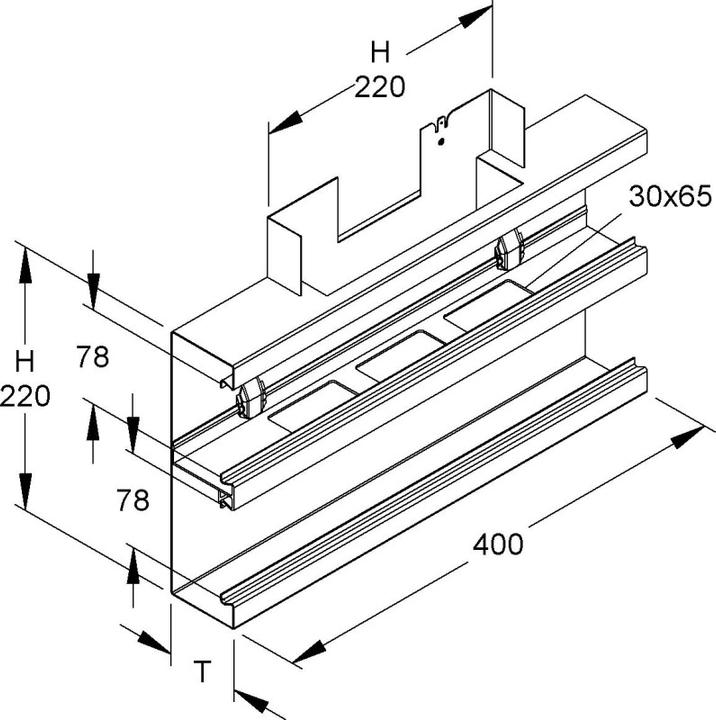

Dimensions (approx. measurements)
H x D: 220 x 61 mm
Length: 400 mm
Cover Openings: 78 mm + 78 mm
Division of Cable Runs: 110 mm + 110 mm
Color Shade: pure white RAL: 9010.
