Niedax NIE LUAC100.100 external corner 90° w. cover Cover 100x100mm strip galvanised DIN EN 10346
Price in EUR including VAT
Delivered between Wed, 3.12. and Thu, 18.12.
free shipping
Product details

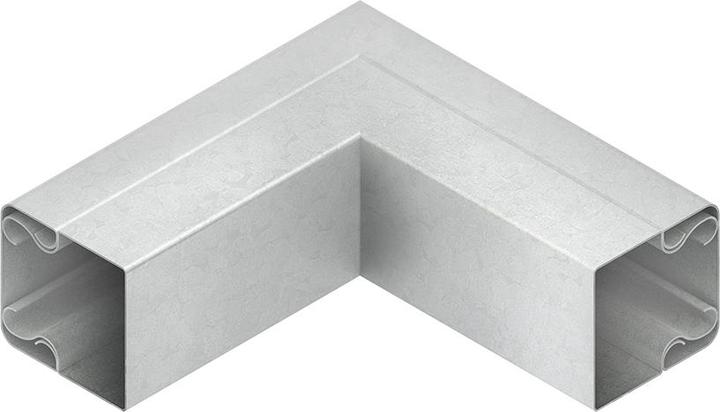

90° external corner for cable protection channel, with snap-on cover, channel base unperforated. The potential equalization of the cover occurs automatically upon snapping on. Accessories for potential equalization, two joint connectors LST per joint must be ordered separately. VDE certified! Suitable for cable protection channels LLK and LUK. Dimensions (approx. measurements) Height H x Width B: 100 x 100 mm, internal leg length: 75 mm. Material: Steel, strip galvanized according to DIN EN 10346.
Material | Steel, Strip galvanised in accordance with DIN EN 10346 |
Cable routing type | Installation duct |
mounting style | Floor mounting |
Height | 10 cm |
Width | 10 cm |
Item number | 32131592 |
Manufacturer | Niedax |
Category | Cable routing |
Manufacturer no. | LUAC100.100 |
Release date | 16.11.2022 |
Material group | Metal |
Material | Steel, Strip galvanised in accordance with DIN EN 10346 |
Cable routing type | Installation duct |
mounting style | Floor mounting |
Operating temperature | 90 °C |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Height | 10 cm |
Width | 10 cm |
Product Safety |
Specifications may include unverified machine translations.
