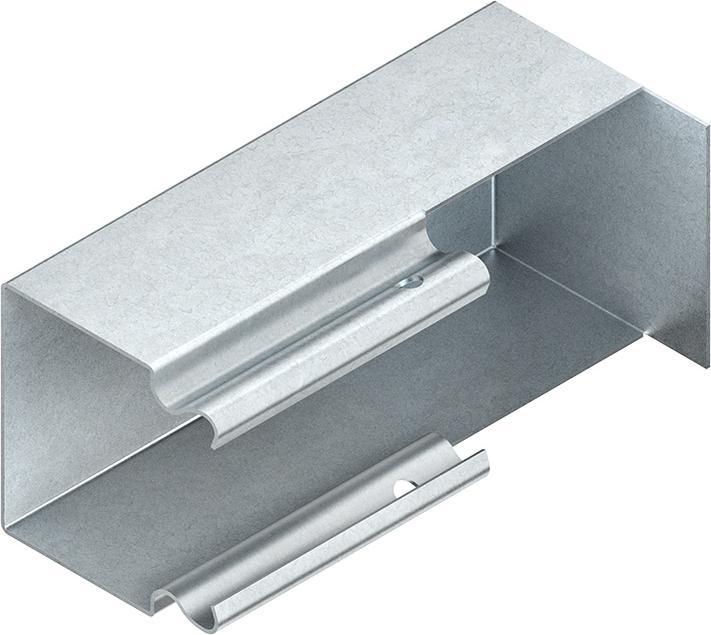

Niedax Internal Corner Insert LUIE 60.100

Manufacturer: Niedax
Description: Internal Corner Insert
Type: LUIE 60.100
Height: 60 mm
Width: 100 mm
Design: Lower Part
Angle: 90 °
Material: Steel
Material Quality: Other
Halogen-Free: Yes
Antibacterial Treatment: No
Surface Protection: Band Galvanized
Suitable for Function Maintenance: No
Mounting Type: Floor Hole
Protection Class (IP): IP20
With Protective Film: No
Operating Temperature: -5..90 °C

Niedax Internal Corner Insert LUIE 60.100: Additional Details
Cable Protection Channel Internal Corner Insert 90°, without cover, channel lower part unpunched, the cover of the cable protection channel is guided over the internal corner insert, the potential equalization of the cover occurs automatically when snapping in. Accessories for potential equalization, joint connector LST... and potential equalization cable GSLH..., must be ordered separately. VDE certified!

Use for: Cable Protection Channels LLK... / LUK...

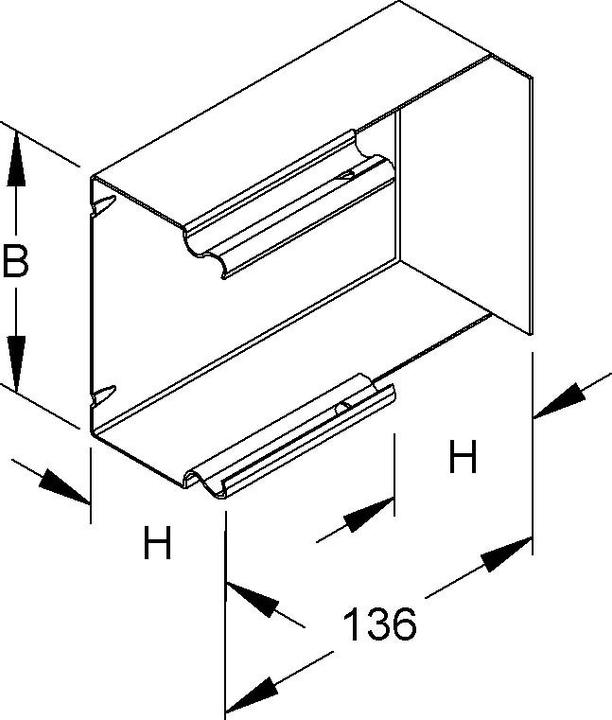

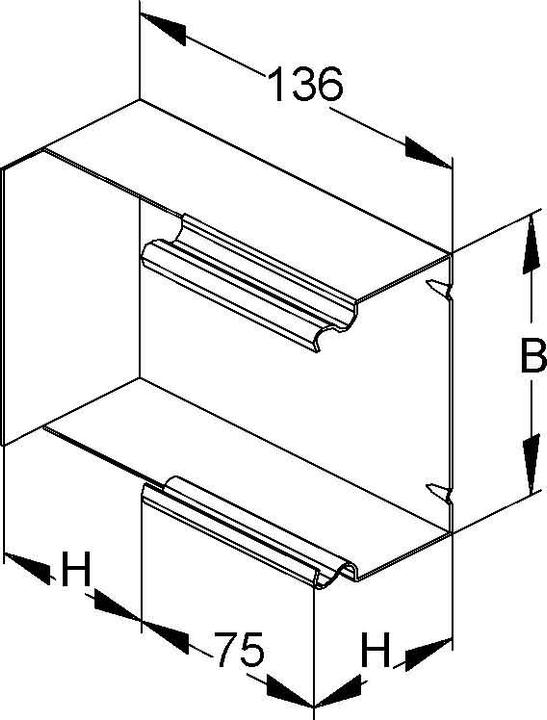

Dimensions (approx. dimensions) H x W: 60 x 100 mm
One-Sided Arm Length Inside: 75 mm
Material: Steel, band galvanized according to DIN EN 10346
EAN: 4013339766208.
