Niedax T-piece LUT 80.080.080

Manufacturer: Niedax
Description: T-piece
Type: LUT 80.080.080
Height: 60 mm
Width: 80 mm
Outgoing height: 80 mm
Outgoing width: 80 mm
Design: Lower part and upper part
Material: Steel
Material quality: other
Halogen-free: yes
Antibacterial treatment: no
Surface protection: band galvanized
Suitable for function maintenance: no
Mounting type: floor hole
With protective film: no
Protection class (IP): IP20
Operating temperature: -5..90 °C

Niedax T-piece LUT 80.080.080: further details

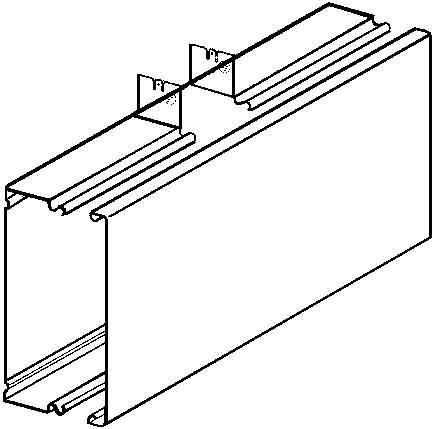

Cable protection channel T-piece 90°, with snap-on cover, channel lower part unpunched, connection lugs with grounding flag aligned with the channel, these must be bent at the pre-formed notches at a right angle for the outgoing connection on-site. The potential equalization occurs between the channels via the joint connector LST... and the potential equalization cable GSLH... (please order separately), and automatically with the covers when snapping on. VDE certified!

Use for: cable protection channels LLK... / LUK...
Dimensions (approx. measurements)
Main direction H x B: 80 x 80 mm
Outgoing H x B: 80 x 80 mm
The height of the outgoing connection corresponds to the height of the main direction!
Length L: 350 mm
Material: Steel, band galvanized according to DIN EN 10346
EAN: 4013339792306.
