Niedax NIE LUWE 60.060 Vertical corner insert 90°, 60x60mm strip galvanised
Product details

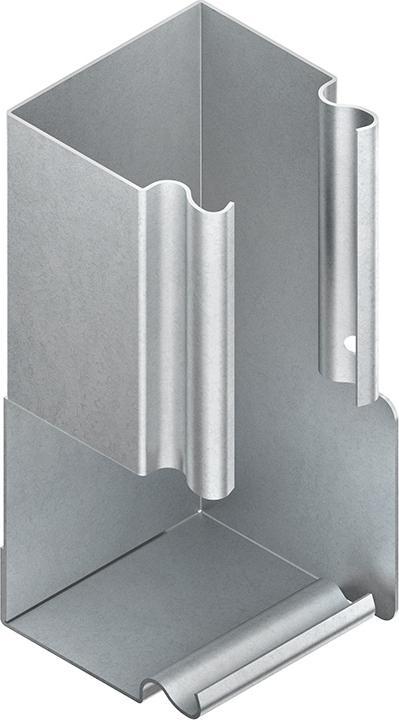

Niedax vertical corner piece LUWE 60.060
Manufacturer: Niedax
Description: vertical corner piece
Type: LUWE 60.060
Height: 60 mm
Width: 60 mm
Version: lower part
Angle: 90 °
Material: steel
Material quality: other
Halogen-free: yes
Antibacterial treatment: no
Surface protection: band galvanized
Suitable for function maintenance: no
With protective film: no
Protection class (IP): IP20
Operating temperature: -5..90 °C
Niedax vertical corner piece LUWE 60.060: additional details
Cable protection channel vertical corner piece 90°, without cover, channel lower part unpunched, lead the cover of the cable protection channel over the vertical corner piece, bring the cover of the intersecting cable protection channel flush with the other cover, the potential equalization of the covers occurs automatically when snapping in. Accessories for potential equalization, joint connector LST... and potential equalization cable GSLH..., must be ordered separately. VDE certified!
Suitable for: cable protection channels LLK... / LUK...

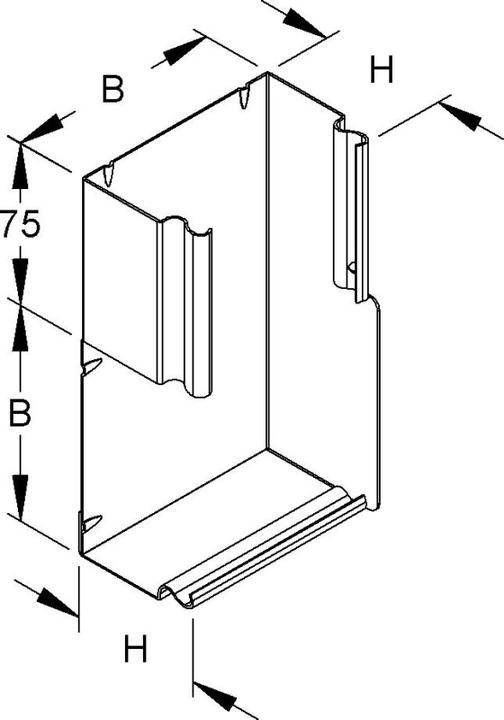

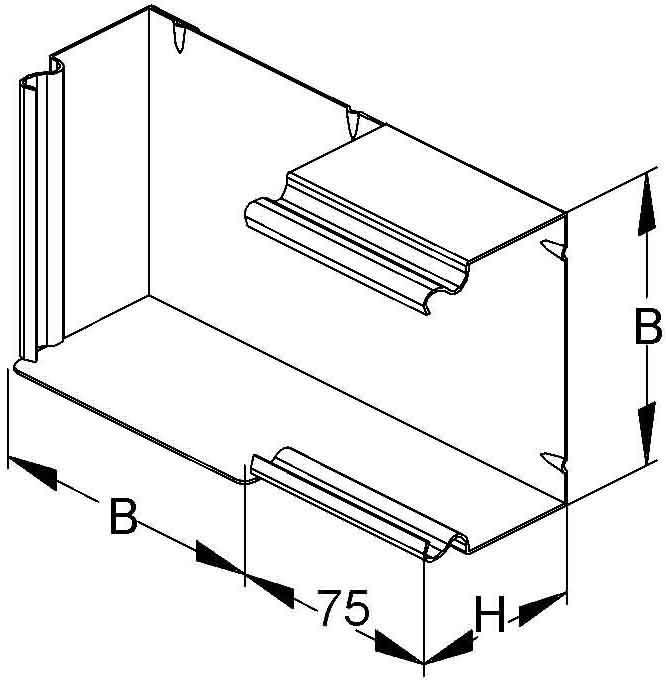

Dimensions (approx. measurements) H x W: 60 x 60 mm
One-sided leg length inside: 75 mm
Material: steel, band galvanized according to DIN EN 10346
EAN: 4013339767700.
Exact colour description | strip galvanised |
Material | Steel, Strip galvanised in accordance with DIN EN 10346 |
mounting style | Attach |
Height | 6 cm |
Width | 6 cm |
Item number | 32113908 |
Manufacturer | Niedax |
Category | Cable routing |
Manufacturer No. | LUWE60.060 |
Release date | 16.11.2022 |
Colour | Silver |
Exact colour description | strip galvanised |
Material group | Metal |
Material | Steel, Strip galvanised in accordance with DIN EN 10346 |
mounting style | Attach |
Operating temperature | 90 °C |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂ emissions | 16,89 kg |
Climate contribution | EUR 0,42 |
Items per sales unit | 1x |
Height | 6 cm |
Width | 6 cm |
