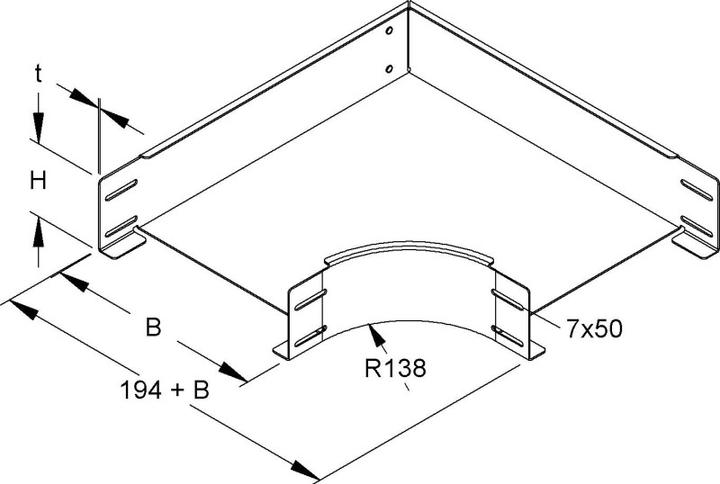

The Niedax RESS 100.200 S 90°KR bend is a robust solution for the installation of cable trays. This bend allows for a horizontal angle of 90 degrees and is specifically designed for walkable cable trays. With a material thickness of 2 mm and a high-quality hot-dip galvanized surface according to DIN EN 10346, it offers both stability and corrosion protection. The unperforated side rails are equipped with connector holes, allowing for easy assembly and connection with other components. The inner radius of 138 mm ensures a smooth curve for the cables, facilitating installation and enhancing the durability of the cable trays. The bend is suitable for a height of 100 mm and comes with proportionate mounting accessories, further simplifying the installation.

• Robust construction made of hot-dip galvanized steel according to DIN EN 10346
• Integrated joint connectors for easy assembly
• Suitable for walkable cable trays with a height of 100 mm
• Gentle inner radius of 138 mm for optimal cable guidance.
