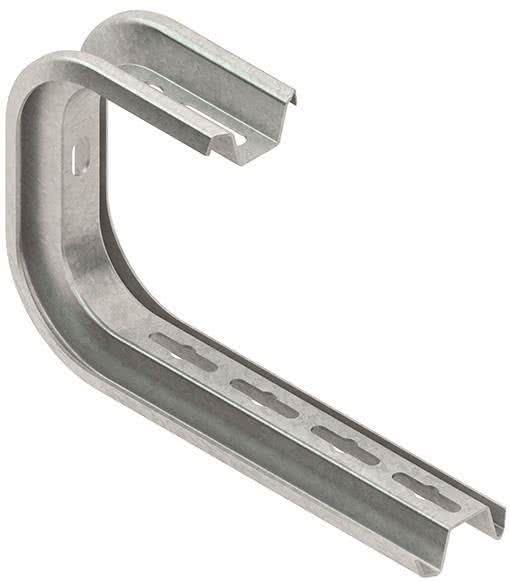

Niedax Support Bracket TKSU 300

Manufacturer: Niedax
Description: Support Bracket for Ceiling Mounting
Type: TKSU 300
Length: 361 mm
Width: 57 mm
Height: 172 mm
Suitable for Cable Tray Width: 50 - 300 mm
Design: Wall Bracket
Angle: 90 °
Load Capacity: 0.5 kN
Suitable for Function Maintenance: no
Material: Steel
Material Quality: Other
Surface Protection: Hot-dip Galvanized

Niedax Support Bracket TKSU 300: Additional Details
Single-piece support bracket for mounting on walls and horizontal ceilings, including proportionate mounting accessories. For static reasons, the installation of the spacer TKSD 20 is required during wall and ceiling mounting to avoid deformation of the trapezoidal profile when tightening the mounting screw. The spacer TKSD 20 is also required for mounting with arm attachment. Please order mounting screw SKM 10x70 according to DIN EN ISO 4017 separately. The load capacity specifications apply only with sufficient anchoring to the supporting substrate.

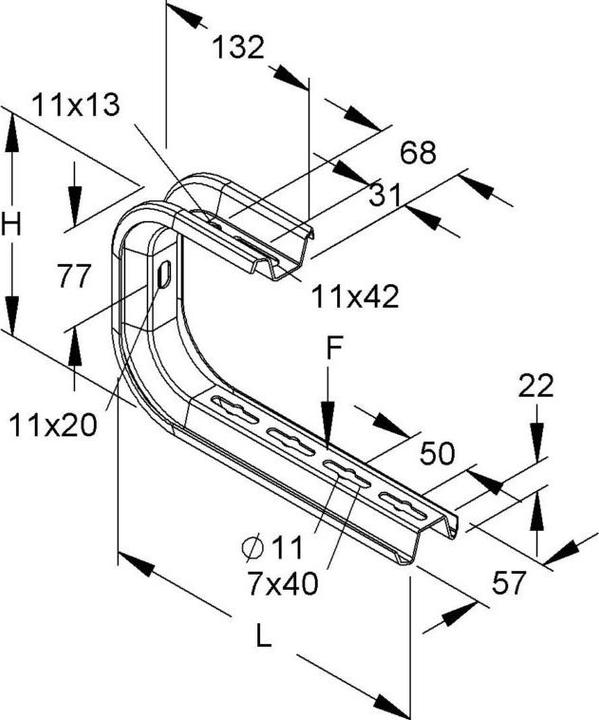

Dimensions (approx. measurements) H x W x L: 172 x 57 x 361 mm
Upper Bracket Length L1: 132 mm
Load Capacity F at L/2: 0.5 kN tested in the system
Material: Steel, hot-dip galvanized according to DIN EN 10346
EAN: 4013339185108.
