Niedax GFRP Elbow 90 Degrees ULB 150.200

Manufacturer: Niedax
Description: GFRP Elbow 90 Degrees
Type: ULB 150.200
Direction Change: Horizontal
Design of Side Beams: Profile (open)
Side Hole: No
Design of Rungs: Profile without holes
Angle: 90°
Elbow Design: Smooth Elbow
Hinged: No
Cable Ladder Height: 150 mm
Cable Ladder Width: 200 mm
Design: Without Connector
Inner Radius: 250 mm
Wide Span Design: No
Suitable for Function Maintenance: No
Material: Plastic
Material Quality: GFRP
Surface Protection: Other
Color: Gray
RAL Number: 7032

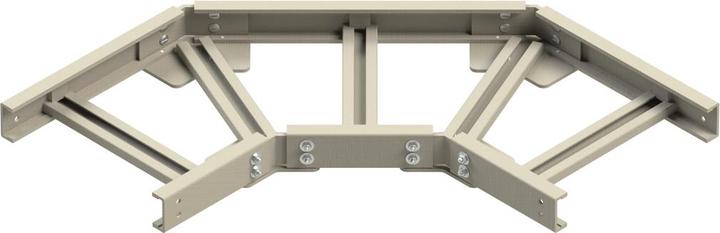

The 90° GFRP elbow, pultruded, features unperforated side beams as well as connector holes and open unperforated rungs made from C-profile with approximately 17 mm slot width. It is used to create horizontal 90° corner connections. Additional fastening accessories must be ordered separately, halogen-free.

When installing, the following must be noted:

• A mounting distance of approximately 30 mm must be considered when connecting the fitting.
• The fitting must be supported at each cable ladder access with brackets.
• If the radius > 250 mm and/or the width > 400 mm, additional middle support should be provided.
• To ensure proper installation, the connectors at each cable ladder access must be secured with 4 FKM 6X20 E4 screws.

GFRP elbow 90° with connection lugs (1) made of stainless steel available upon request. The joint connectors ULGH 150/150 and ULIH 150 E4 are not included (please order separately).

Use for: GFRP Cable Ladder UL 150... GFRP Cable Ladder ULL 150...

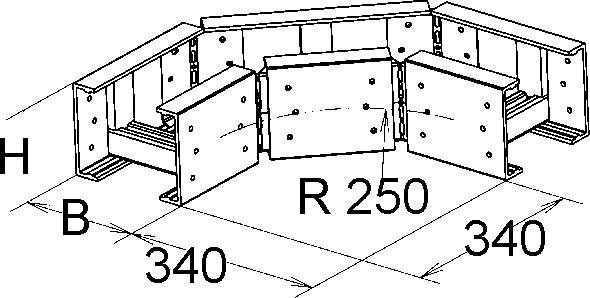

Dimensions (approx. dimensions) H x W: 150 x 200 mm
External Dimensions: 345 mm + W
Radius R: 250 mm
Material: UP-GF (glass fiber reinforced polyester)
Screw Material: Stainless Steel, Material No. 1.4404, AISI 316L
Shade: Pebble Gray
RAL: 7032 (similar)
EAN: 4013339958795.
