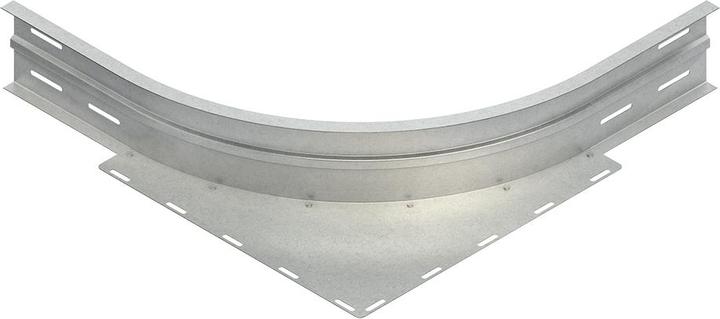

Corner construction piece with flanged, round, and unperforated side rail, featuring connector holes for attachment and a riveted support plate. It is suitable for wide-span cable trays and wide-span cable ladders, allowing for cost-effective production of 90° corner and T-connections. This width-independent component can be used to combine different widths and branches, enabling more flexible design of routing paths during on-site assembly, including hot-dip galvanized, proportionate fastening accessories. The radius of the form piece is designed to allow cable installation according to DIN/VDE 0298 Part 3. Joint points must be supported by an appropriate supporting structure in close proximity.

Usable for:

• Wide-span cable tray WRL 150
• Wide-span cable tray WRU 150
• Wide-span cable tray WRLM 150
• Wide-span cable ladder WSL 150
• Wide-span cable ladder WSLM 150

Dimensions (approx. measurements):

• Height H (clear internal dimension): 151.5 mm
• External dimensions: 750 mm
• Internal rail radius R: 500 mm
• Material: Steel, hot-dip galvanized according to DIN EN ISO 1461.
