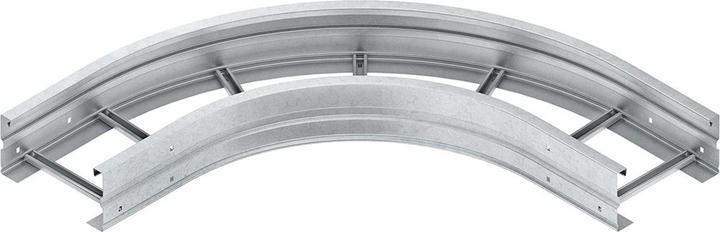

Niedax NIE WSBR 150.600 F bend 90° 150x600mm round beaded ungel.feuerv.
Product details
90° bend, with flared, rounded, and unperforated side rails, featuring connector holes for connections, designed for wide-span cable ladders, shape-stable due to riveted, upward-open C-profile rungs with a slot width of 16 mm, for creating horizontal 90° drops. Joint connector WSV 150.500 must be ordered separately. The radii of the fittings are designed to allow cable installation in accordance with DIN/VDE 0298 Part 3. Suitable bracket clamps (B... and BK...) can be found in the KI catalog. Joint points must be supported by an appropriate load-bearing structure in close proximity. Usable for: Wide-span cable ladder WSL 150... Wide-span cable ladder WSLM 150... Dimensions (approximate measurements) Height H x Width B: 150 x 600 mm External dimensions: 750 mm + B Internal rail radius R: 500 mm Material: Steel, hot-dip galvanized according to DIN EN ISO 1461.
Material | Hot-dip galvanised in accordance with DIN EN ISO 1461, Steel |
Cable routing type | Cable support system |
Height | 15 cm |
Width | 60 cm |
Item number | 32107206 |
Manufacturer | Niedax |
Category | Cable routing |
Manufacturer no. | WSBR150.600F |
Release date | 16.11.2022 |
Colour | Silver |
Material group | Metal |
Material | Hot-dip galvanised in accordance with DIN EN ISO 1461, Steel |
Cable routing type | Cable support system |
Country of origin | Germany |
CO₂ emissions | 6 kg |
Climate contribution | EUR 0,14 |
Items per sales unit | 1x |
Height | 15 cm |
Width | 60 cm |
