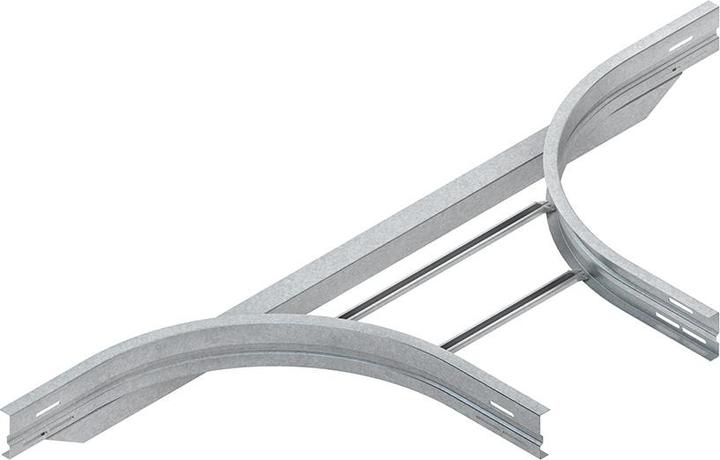

Branch T-piece with flanged, round, and unperforated side beams, featuring connector holes for connections, integrated joint connectors, designed for wide-span cable ladders. Shape-stable due to a rear-mounted support profile and riveted, upward-open C-profile rungs with a slot width of 16 mm. Cost-effective production of 90° T-branches and intersections, dependent on width in the main direction, including hot-dip galvanized proportionate fastening accessories. The radii of the fittings are designed to allow cable installation according to DIN/VDE 0298 Part 3. Suitable clamp brackets can be found in the catalog. Joints must be supported by an appropriate load-bearing structure in close proximity. Usable for wide-span cable ladder WSL 105. Dimensions (approx. measurements) Height H (clear internal dimension) x Width B (clear internal dimension): 106.5 x 605 mm. Notch of the wide-span cable tray: 1003 mm + B. Length in the outgoing direction: 750 mm. Internal beam radius R: 500 mm. Material: Steel, hot-dip galvanized according to DIN EN ISO 1461.
