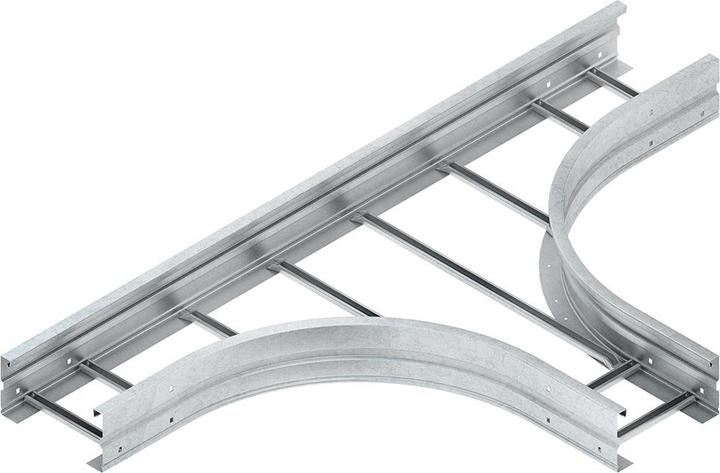

T-piece with flanged, round, and unperforated side rails, featuring connector holes for connections. It is shape-stable due to riveted, upward-open C-profile rungs with a slot width of 16 mm, suitable for wide-span cable trays for creating 90° T-branches. Joint connector WSV 150.500 must be ordered separately. The radii of the fittings are designed to allow cable installation according to DIN/VDE 0298 Part 3. Suitable clamp brackets can be found in the KI catalog. Joint points must be supported by an appropriate load-bearing structure in close proximity. Usable for: Wide-span cable ladders WSL 150 and WSLM 150. Dimensions (approx. measurements) Height H x Width B: 150 x 200 mm, Length in main direction: 1500 mm + B, Length in branch direction: 750 mm + B, Inner rail radius R: 500 mm. Material: Steel, strip galvanized according to DIN EN 10346.
