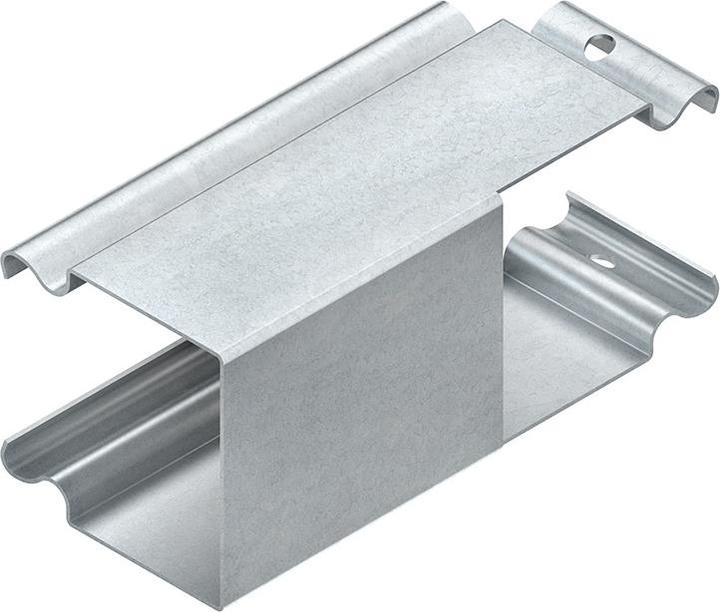

Niedax External Corner Insert LUAE 60.200
Manufacturer: Niedax
Designation: External Corner Insert
Type: LUAE 60.200
Height: 60 mm
Width: 200 mm
Design: Base part
Angle: 90 °
Material: Steel
Material Quality: Other
Halogen-free: Yes
Antibacterial Treatment: No
Surface Protection: Strip galvanized
Suitable for Function Maintenance: No
Mounting Type: Floor hole
Protection Class (IP): IP20
With Protective Film: No
Operating Temperature: -5..90 °C

Niedax External Corner Insert LUAE 60.200: Additional Details
Cable protection channel external corner insert 90°, without cover, channel base part unperforated, cut the cover of the cable protection channel at an angle and lead it over the external corner insert, the potential equalization of the cover occurs automatically when snapping in. Accessories for potential equalization, joint connector LST... and potential equalization cable GSLH..., must be ordered separately. VDE certified!
Suitable for: Cable protection channels LLK... / LUK...

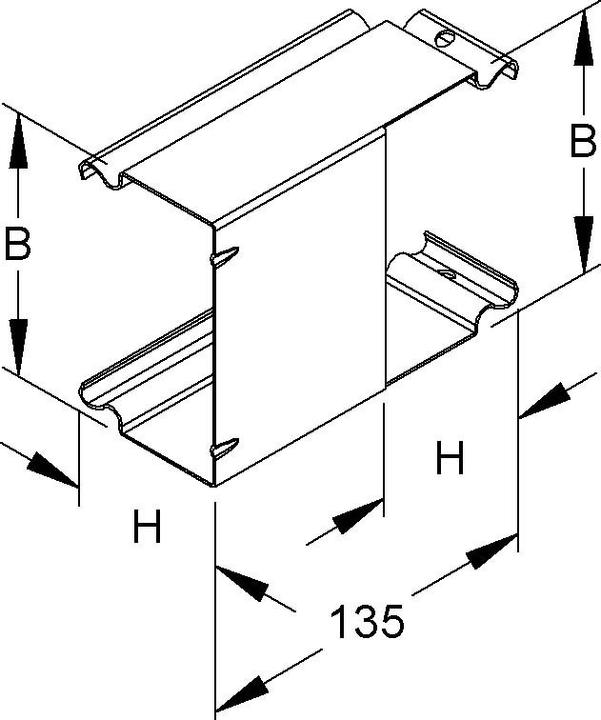

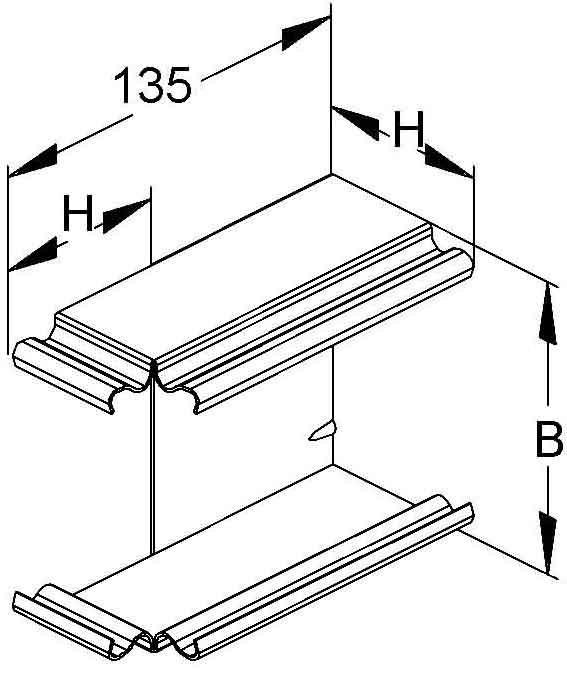

Dimensions (approx. dimensions) H x W: 60 x 200 mm
One-sided leg length inside: 75 mm
Material: Steel, strip galvanized according to DIN EN 10346.
