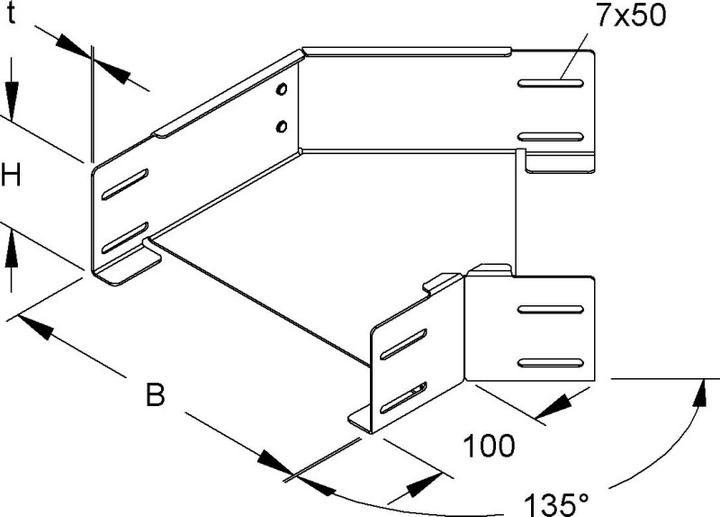

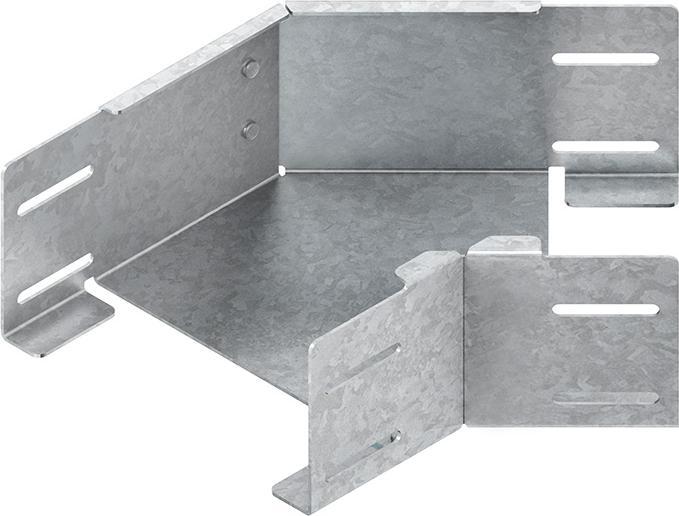

Niedax Bend 45° RBAS 100.200 S

Manufacturer: Niedax
Designation: Bend 45° 100x200mm
Type: RBAS 100.200 S
Change of direction: Horizontal
Angle: 45°
Construction: Bend rigid
Bend design: Smooth bend
With top: No
Inside radius: 100 mm
Cable tray height: 100 mm
Cable tray width: 200 mm
Material thickness: 2 mm
Side perforation: No
Mounting hole in base: No
NATO hole pattern: No
Design: Integrated connector
Wide span design: No
Suitable for functional integrity: No
Material: Steel
Stainless steel, pickled: No
Material grade: Other
Surface protection: Strip galvanised

Niedax Bend 45° RBAS 100.200 S is a heavy-duty version with unperforated side rails but with connector perforation for connection, as well as integrated butt joint connectors. It is designed for the production of a 45° horizontally angled cable tray run, suitable for walkable cable trays, including proportional fixing accessories. The edge height for walkable cable trays is 100 mm.

Dimensions (approx.): H x W (inside): 100 x 200 mm
Material thickness: 2 mm
Material: Steel, strip galvanised according to DIN EN 10346
EAN: 4013339129591.
