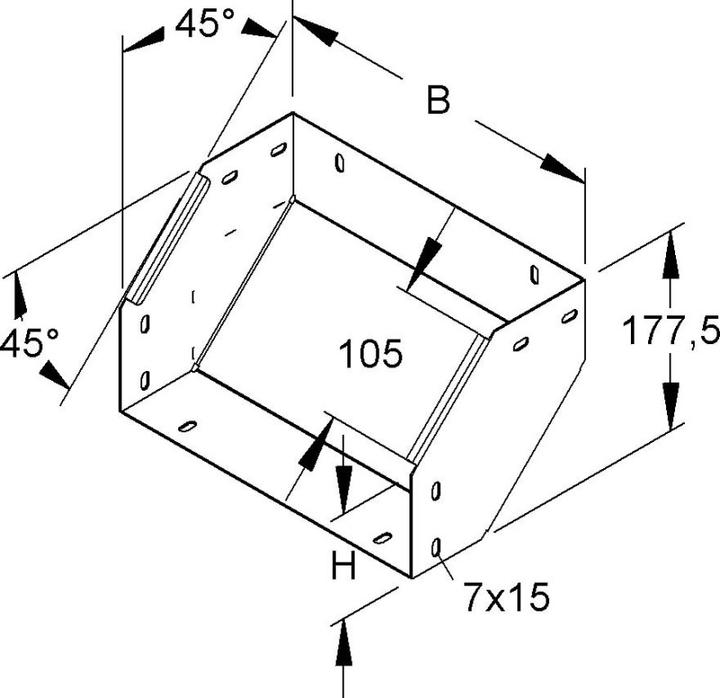

Niedax Universal riser RSDU 100.100-1.5S OV Manufacturer :Niedax Designation :Universal riser 2x45°, 100x100mm Type :RSDU 100.100-1.5S OV Change of direction :vertically rising Angle :90° Construction :rigid arch Arch design :smooth arch With top :no Inside radius :85 mm Cable tray height :100 mm Cable tray width :100 mm Material thickness :1.5 mm Side perforation :no Mounting hole in base :no NATO hole pattern :no Version :without connector Wide span version :no Suitable for function maintenance :no Material :steel Stainless steel, pickled :no Material grade :other Surface protection :strip galvanised Niedax Universal Riser RSDU 100.100-1.5S OV: further details Universal riser piece 2 x 45°, one-piece, with unperforated side rails but with connector holes for connection, without connectors, for the production of 2 x 45° vertically rising cable trays as well as for the production of vertical 2 x 45° outlets. Suitable for : walkable cable trays with 100 mm edge height Requirement : 2 universal connectors RSUVKS 100... per joint please order separately Dimensions (approx. dimensions) H x W (external) : 92,5 x 100 mm Material thickness t : 1,5 mm Material : Steel, strip galvanised according to DIN EN 10346 , EAN: 4013339191598.
