Niedax wall bracket KTA 200 E3
Manufacturer: Niedax
Designation: Wall bracket
Type: KTA 200 E3
Length: 210 mm
Width: 40 mm
Height: 55 mm
Suitable for cable support system width: 50 to 200 mm
Design: Wall and pole bracket
Angle: 90°
Load capacity: 2.5 kN
Suitable for functional integrity: No
Material: Stainless steel
Material grade: Stainless steel 304 (1.4301)
Surface protection: Other

Niedax wall bracket KTA 200 E3: Further details include a hanging post and wall bracket, standard for wall and hanging post mounting, including proportional fixing accessories in stainless steel, material no. 1.4301. The load capacity data are only valid with sufficient anchorage to the load-bearing substrate or with correct installation on suspended supports. VDE certified!

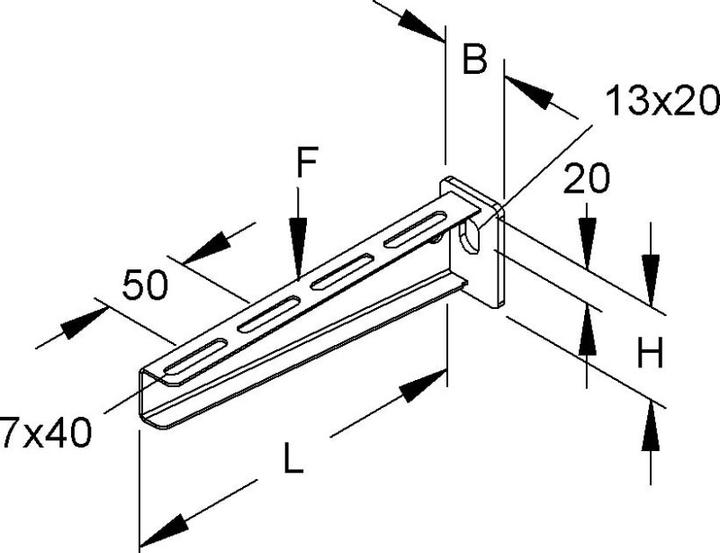

Dimensions (approximate):
Support height H: 55 mm
Support length L: 210 mm
Load capacity F at L/2: 2.5 kN tested in system
Material extension arm: Stainless steel, material no. 1.4301
EAN: 4013339330102.
