OBO Bettermann Device Insertion Cover AIKF DG2 20070

Manufacturer: OBO Bettermann
Description: Device insertion cover GES2, St, F
Type: AIKF DG2 20070
Design: Cover with one side beveled
With overhang: yes
Function: Standard
Width: 200 mm
Height: 70 mm
Length: 800 mm
Mounting opening: rectangular
Number of mounting openings: 1
With connection opening: no
Material: Steel

OBO Bettermann Device Insertion Cover AIKF DG2 20070: additional details

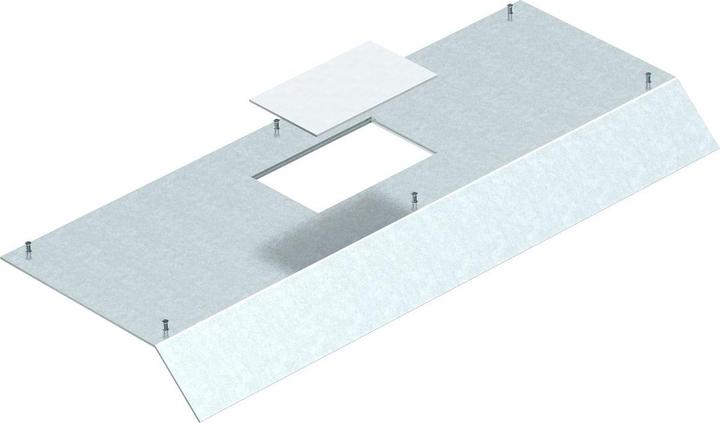

Device insertion cover for channel base AIK/U for the installation of a device insertion of nominal size 2. The mounting opening is sealed with a 2-mm aluminum blind plate. The channel cover is securely screwed into the aluminum side profiles of the channel base. The cover slope overhangs the channel base at a 45° angle.
EAN: 4012195101888.
