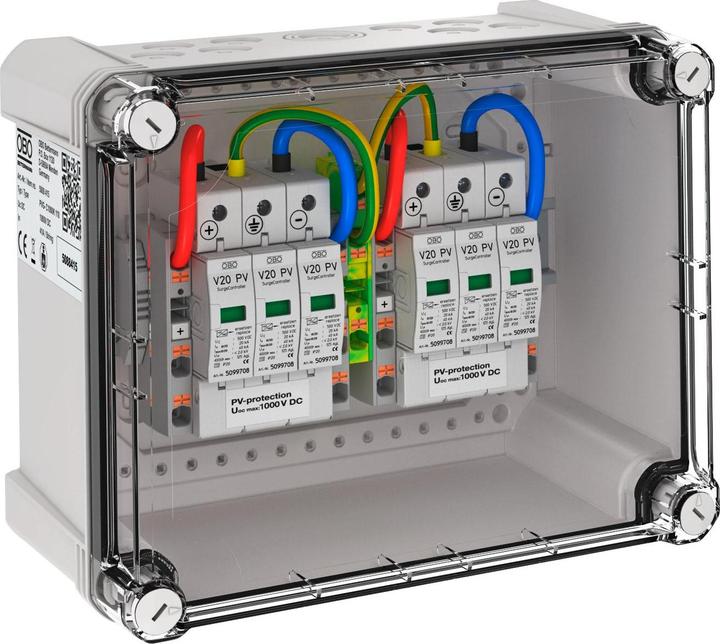

The OBO generator connection box is a high-quality accessory for generators, specifically designed for use in photovoltaic systems. It allows for the connection of two strings and provides a reliable DC protection solution for inverters. With a maximum input voltage of 1000 V and a maximum input current of 41 A per string, this connection box ensures safe and efficient energy transmission. The UV-resistant polycarbonate housing is classified as IP67, meaning it is dust-tight and protected against temporary immersion in water. Its robust construction, with an impact resistance of IK08, ensures that the connection box can be used even under challenging conditions. Additionally, the OBO generator connection box is equipped with a grounding connection and offers easy installation through the use of terminal blocks and cable glands.

• Protection class IP67 for optimal protection against water and dust
• Maximum input voltage of 1000 V DC
• Two MPP trackers, each with one input and output
• Robust housing with impact resistance IK08
• Grounding connection for added safety.
