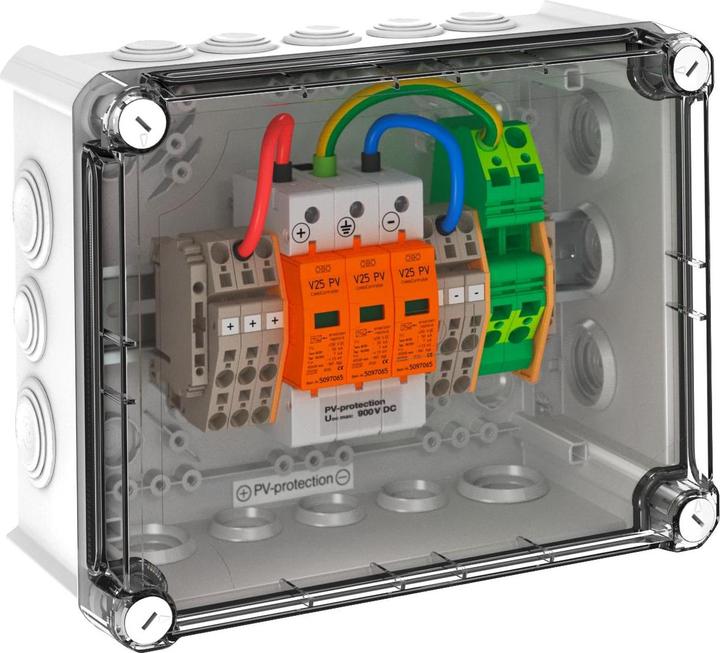

The PV system solution in the housing from OBO Bettermann is a specialized solution for the integration of photovoltaic systems. It provides an efficient and safe connection for PV inverters, equipped with a separate MPP tracker and a varistor surge protector. This system solution is designed to meet the requirements of the VDE 0100-712 standard and ensures a low DC protection level of less than 3.0 kV. The housing is made of robust polycarbonate and offers an IP66 protection rating, making it ideal for outdoor use. With pre-installed terminals and a maximum DC load capacity of 30 A per terminal, this solution is both user-friendly and powerful. It is particularly suitable for applications where high reliability and safety are required, providing a comprehensive solution for DC protection of inverters in PV systems.

• Separate MPP tracker for optimized performance
• Varistor surge protector for additional protection
• Pre-installed terminals for easy installation
• Robust housing with IP66 protection rating
• UV resistant and suitable for outdoor use.
