OBO Bettermann Wall bracket GEB-K B80-110mm spacing=53-83mm screw
Product details

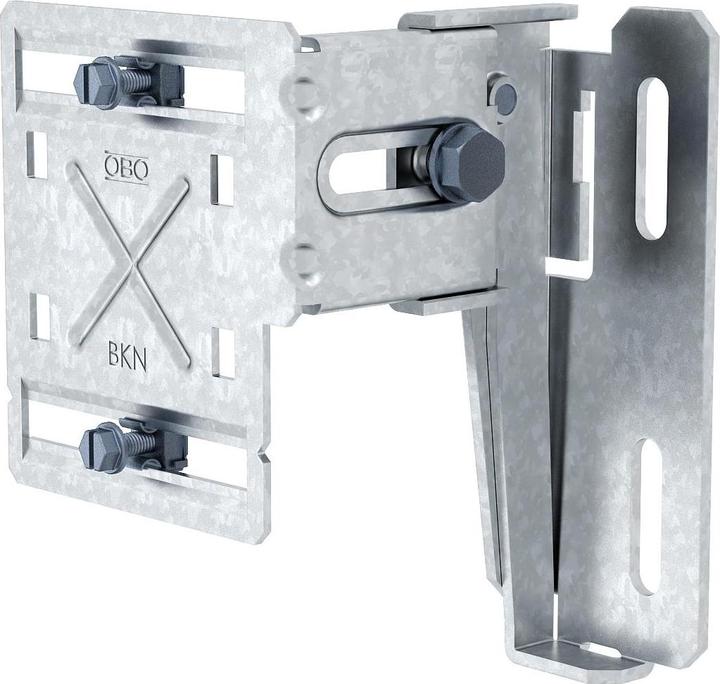

OBO Bettermann Mounting Bracket BKN50 80
Manufacturer: OBO Bettermann
Description: Mounting bracket
Depth: 52-83 mm
Type: BKN50 80
Design: Wall-mounted
Wall distance: 53-83 mm
Suitable for channel width: 110-210 mm
Channel mounting: Screwing
The mounting bracket is used for installing device installation channels on parapet constructions and as a support for convection grids. It is compatible with all Rapid 80 device installation channel systems of types GK, GS, and GA. For the installation of GK device installation channels made of plastic, the appropriate wall bracket adapter is additionally required. For the installation of double channels type GS-D70170 and GS-D90170, as well as for GS channels with a nominal width of 210 mm, the connecting profile is needed.
Shelf bracket type | Console tables |
Material | Wall mounting |
Area of use | Inside |
Item number | 33560596 |
Manufacturer | OBO Bettermann |
Category | Shelf brackets |
Manufacturer no. | 6288001 |
Release date | 17.5.2023 |
Material group | Metal |
Material | Wall mounting |
Surface finish | Chromed |
Shelf bracket type | Console tables |
surface finish | Chromed |
borehole diameter | 110 mm |
Area of use | Inside |
max. shelf depth | 210 mm |
max. shelf thickness | 210 mm |
Country of origin | Hungary |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Scope of delivery | Mounting bracket BKN50 80 |
Depth | 83 mm |
Height | 83 mm |
Width | 80 mm |
