Optex Outdoor motion detector HX-40 RAM 12m, wireless
12 mProduct details
Optex Outdoor Motion Detector HX-40 RAM - PIR Motion Detector with Cover Monitoring, Wireless Version

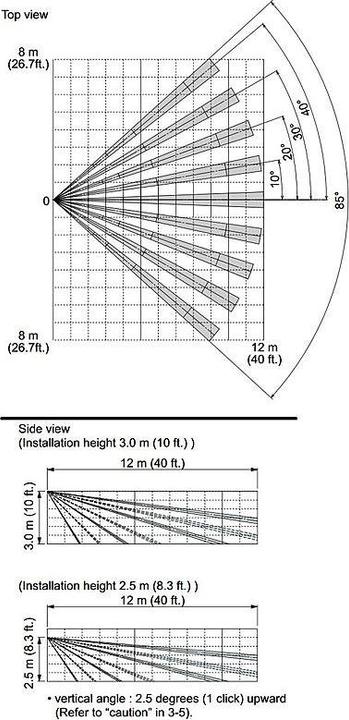

The Optex Outdoor Motion Detector HX-40 RAM (R=Wireless) is a battery-operated infrared motion detector that can be easily installed in various locations. It features two pyro elements equipped with a so-called AND combination to prevent false alarms caused by small animals. Additionally, the Optex Outdoor Motion Detector HX-40 RAM is equipped with an anti-masking function. With a detection angle of 85° and a range of up to 12 meters, the Optex Outdoor Motion Detector HX-40 RAM is ideal for garden monitoring.
The Optex Outdoor Motion Detector can be wired to the Secvest wireless opening detector. In this setup, the wireless opening detector acts as a transmitter for the Secvest wireless alarm system. The Optex Outdoor Motion Detector is powered by the battery of the Secvest wireless opening detector. The same principle can also be applied with the wireless sensor input from Lupus.
- Installation of a wireless transmitter, e.g., Secvest wireless opening detector
- Integrated anti-masking function
- Battery-operated
- N.C. alarm output activates when covered
- Two separate Optex special pyro elements with double conductive shielding
- Variable range, max. 12 meters, adjustable
- Up to 3 meters mounting height
- Intelligent temperature compensation
- Protection class IP 55
- Changeover relay output
- Operating voltage 2.5-9 V DC.
Exact colour description | White |
Motion sensor type | Motion sensor |
coverage angles | 85° |
Range | 12 m |
Item number | 59281592 |
Manufacturer | Optex |
Category | Motion sensors |
Manufacturer no. | HX-40 RAM |
Release date | 10.6.2025 |
Colour | White |
Exact colour description | White |
Motion sensor type | Motion sensor |
Application range | Outdoor |
coverage angles | 85° |
Range | 12 m |
Protection type (IP code) | IP55 |
Power supply | Battery operated |
Requires Smart Home Hub | No |
Transmission type | Funk |
CO₂ emissions | 29,26 kg |
Climate contribution | EUR 0,74 |
Scope of delivery | 85° angle of coverage, Anti-masking (AM = spray-off detection), Battery-operated infrared motion detector, Changeover contact Relay output, Intelligent temperature compensation, N.C. Fault output switches when covered, Protection class IP 55, Radio version, Range of up to 12 metres, Secvest wireless opening detector compatible, Two pyro elements with AND combination, two separate Optex special pyro elements with double conductive shielding, Up to 3 metres mounting height |
