Optex Outdoor Motion Detector HX-80 RAM - PIR Long-Range Motion Detector, Cover Monitoring, Wireless Version

The Optex Outdoor Motion Detector HX-80 RAM (R=Wireless) is a battery-operated long-range detector that can be easily installed in many different locations. It features two pyro elements equipped with a so-called AND combination to prevent false alarms caused by small animals. Additionally, the Optex Outdoor Motion Detector HX-80 RAM is equipped with anti-masking (AM=Spray Detection).

With a range of up to 24 meters, the Optex Outdoor Motion Detector HX-80 RAM is ideal for garden monitoring as well as for use in warehouses and commercial areas.

The Optex Outdoor Motion Detector can be wired to the Secvest wireless opening detector. In this setup, the wireless opening detector acts as a transmitter for the Secvest wireless alarm system. The Optex Outdoor Motion Detector is powered by the battery of the Secvest wireless opening detector. The same principle can also be applied with the wireless sensor input from Lupus.

• Battery-operated
• Installation of wireless transmitter (= R) e.g. Secvest wireless opening detector
• Spray detection (= AM)
• N.C. tamper output activates on cover

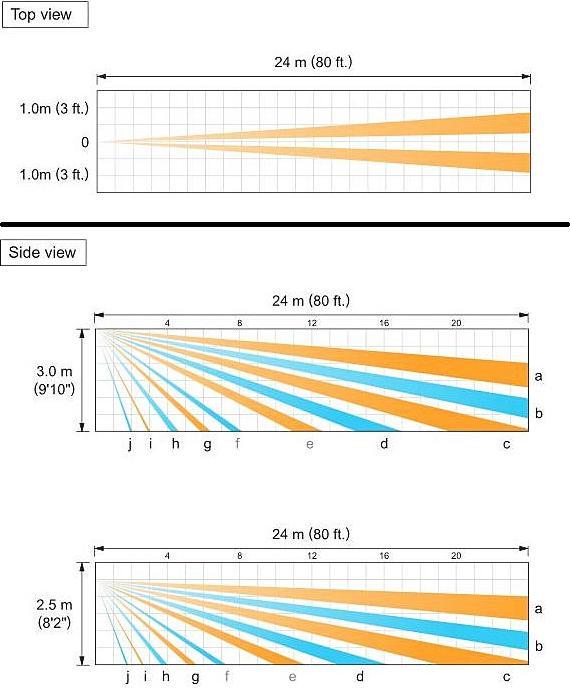

• Detection area 24 x 2 m
• Detection range adjustable
• Two special pyro elements
• With double conductive shielding
• Protection class IP 55
• Changeover relay output
• Operating voltage 2.5-9 V DC.
