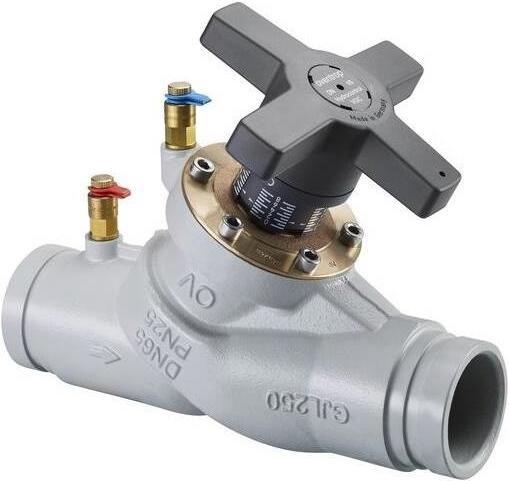

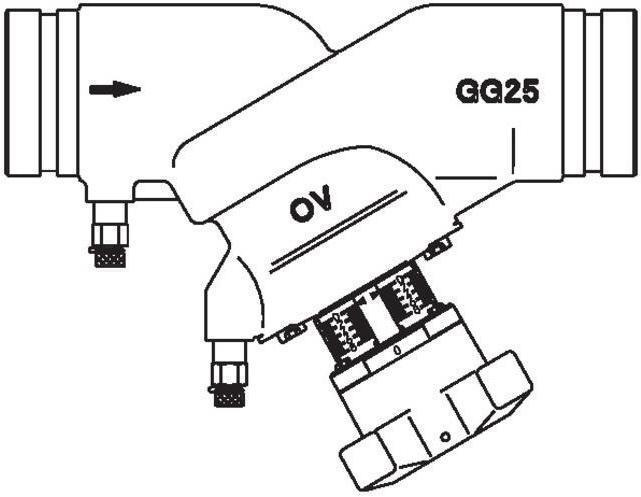

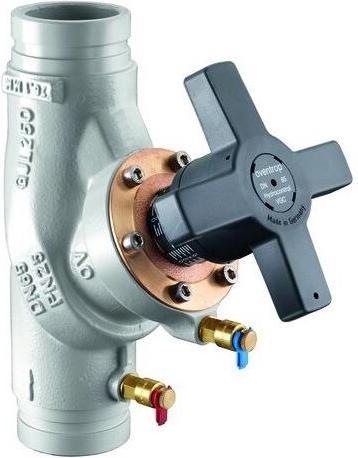

Oventrop OV Line regulating valve Hydrocontrol VGC PN 25 GG DN 125 Roll groove connection 141.3mm
Price in EUR including VAT
Delivered between Wed, 8.10. and Wed, 22.10.
free shipping
Product details
Rolling groove on both sides for connection couplings - classic measuring technology - 2 measuring valves G 1/4 - Flow rate determination by differential pressure measurement taking into account the presetting values - with secured - always controllable - stepless presetting.
Further technical features:
- Operating height: 289 mm
- Max. medium temperature (continuous operation): 150
- With coupling connection 2: Yes
- With coupling connection 1: Yes
- With extended measuring nipples: No
- Nominal inside diameter: DN 125
- Suitable for hot drinking water: No
- Min. medium temperature (continuous operation): -10
- Diameter handwheel: 160 mm
- Suitable for drinking water: No
- With thermometer: No
- Thermostatic: No
- With impulse line connection: No
- Pressure stage article: PN 25
- Angle spindle: 60°
- Motor controlled: No
- Material of housing: Cast iron
- Operating device: Static
- Manual operation: Yes
- With level indicator: Yes
- Suitable for heating water: Yes
- With measuring nipple: Yes
- With drain valve: No
- With measuring connection: Yes
- KIWA test seal: No
- Material quality: Cast iron GG 25 (GJL-250)
- Surface protection coated.
Area of use | Water conduit |
Metal type | Cast iron |
Item number | 22168010 |
Manufacturer | Oventrop |
Category | Sanitary installation accessories |
Manufacturer no. | 1063054 |
Release date | 13.9.2022 |
Material group | Metal |
Metal type | Cast iron |
Material | Cast iron GG 25 (GJL-250) |
Area of use | Water conduit |
Connection thread | 141.30 mm |
CO₂-Emission | |
Climate contribution |
Diameter | 125 mm |
Product Safety |
