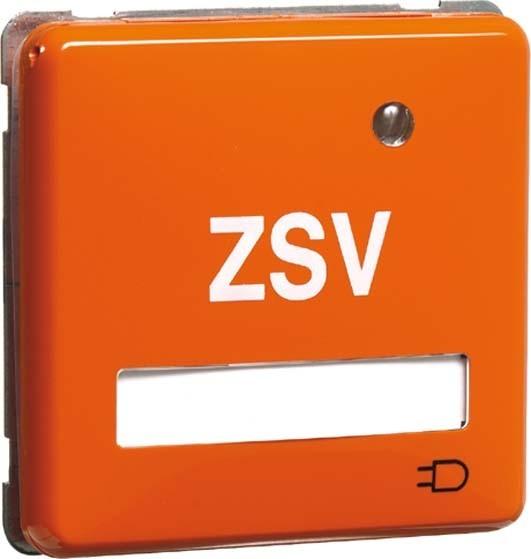

Peha socket outlet Schuko D80651133KWULED4NAZS

Manufacturer: Peha
Designation: Socket outlet Schuko
Inscription, ZSV, or Type: D80651133KWULED4NAZS
Design: Schuko
Number of units: 1
Imprint/marking: ZSV
Connection type: Plug-in terminal
With hinged cover: No
With increased touch protection: No
Text field/marking area: Yes
Colour: Orange
RAL number (similar): 2004
Transparent: No
Lockable: No
Ejector mechanism: No
Insulated installation: No
With function light: Yes
With orientation light: Yes
Overvoltage protection: No
Residual current protection: No
With microfuse: No
Special power supply: Additional safety supply (orange)
Mounting type: Flush-mounted
Mounting type: Claw/screw mounting
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Finish: Glossy
With on/off switch: No
Rotated central insert: No
Rated current: 16 A
Rated voltage: 250 V
Frequency: 50-60 Hz
Rated residual current: 0 mA
Suitable for protection class (IP): IP44
Cover: Central plate
For "difficult conditions" (according to VDE): No

Further details: Schuko socket outlet, break-proof, with LED indicator light, with imprint ZSV and orange base for additional safety power supply, 2-pin, 16 A 250 V, with screwless terminals, with green LED as voltage indicator, 230 V/1mA, LED service life approximately 10 years, for combination mounting, with orange hinged cover, with labelling field 10 x 48.5 mm. On request without imprint or with BEV possible.
