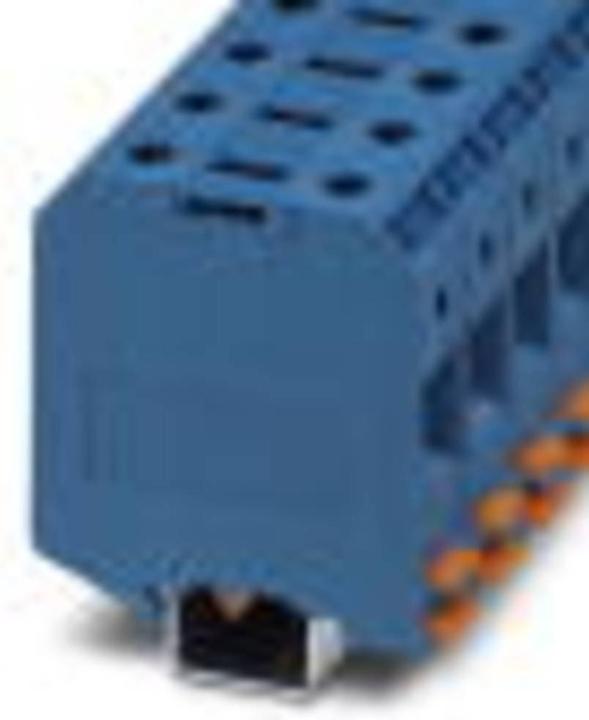

Phoenix Contact High-current terminal UKH 50-IB BU
Product details
The UKH 50-IB BU high current terminal from Phoenix Contact is a high-quality accessory for electrical installations, designed for applications with high current loads. With a rated voltage of 1000 V and a rated current of 150 A, this terminal provides a reliable connection for various electrical systems. It is equipped with hexagon socket screws, allowing for a secure screw connection. The terminal is suitable for cable cross-sections ranging from 16 mm² to 70 mm² (AWG 6 to 2/0), offering flexibility for different installation requirements. Installation can be carried out on various mounting systems, facilitating integration into existing systems. The high current terminal is also designed for a temperature range of -60 °C to 105 °C, making it ideal for use in demanding environments.
- High current terminal with hexagon socket screws for secure connections
- Suitable for cable cross-sections from 16 mm² to 70 mm²
- Temperature resistant from -60 °C to 105 °C
- Compatible with various mounting types for flexible installation.
Item number | 31805630 |
Manufacturer | Phoenix Contact |
Category | Electrical installation small parts |
Manufacturer no. | 3009066 |
Release date | 12.10.2022 |
Colour | Blue |
Exact colour description | Blue |
Material | Other |
Max. temperature | 105 °C |
Min. temperature | -60 °C |
External thread | Screw connection |
Nominal voltage | 1000 V |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Scope of delivery | AWG: 6 - 2/0, Colour: blue, Connection type: Screw connection, Cross-section: 16 mm² - 70 mm², High current terminal, Mounting type: TH35 top-hat rail, Number of connections: 2, Number of poles: 1, Rated current: 150 A, Rated voltage: 1000 V, Width: 20 mm, with hexagon socket screws |
Width | 20 mm |
Length | 70.50 mm |
Height | 75.45 mm |
Product Safety |
