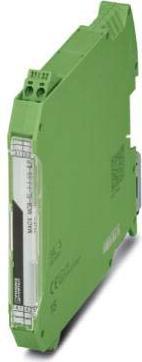

Phoenix Contact Passive Isolator MACX MCR-SL-IIHVILP

Manufacturer: Phoenix Contact
Description: Passive Isolator 2-Way 0(4)mA-20 mA
Type: MACX MCR-SL-IIHVILP
Number of input ranges 0 mA ... 20 mA: 1
Number of input ranges 4 mA ... 20 mA: 1
Number of output ranges 0 mA ... 20 mA: 1
Number of output ranges 4 mA ... 20 mA: 1
Number of channels: 1
Fault signal output: no
Intrinsic safety according to EN 60947-5-6 NAMUR: no
Galvanic isolation between inputs: no
Height: 112.5 mm
Width: 12.5 mm
Depth: 114.5 mm
Load: 1375 Ohm
Operating temperature: -40..85 °C
Temperature drift: 0.002 %/K
Device design: Mounting device
Electrical connection type: Screw connection
Mounting type: Snap fastening
Mounting rail
Protection class (IP): IP20

Phoenix Contact Passive Isolator MACX MCR-SL-IIHVILP: additional details
1-channel input loop-powered 2-way isolator with increased isolation voltage and pluggable connection technology for galvanic separation of analog signals. Input signal = output signal: 0(4) mA ... 20 mA. Screw connection technology.
