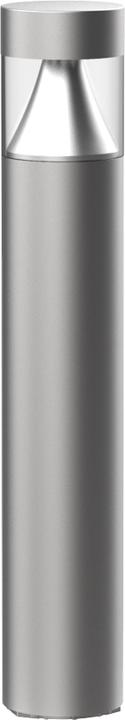

PiL 3114008
1587 lm, IP66Product details
Outdoor pole light series, consisting of: lamp body and cap made of AISI 316 electropolished stainless steel or powder-coated aluminum. Diffuser made of transparent UV-resistant polycarbonate. Reflector made of metallized pure aluminum, highly glossy, oxidation-free. Heat sink made of aluminum. Age-resistant silicone gasket. Connection box made of technopolymer. Connection box made of technopolymer with automatic safety switch for easier connection of the supply line. Kit with cable gland for external through-wiring available as an accessory. The TECH versions are fully equipped with an IP68 electrical connection box made of technopolymer, connected to the lamp with H07RN-F cable, pre-equipped for through-wiring and suitable for cables with a diameter of 7 - 13.5 mm. This allows for the installation and connection of the lamp to the power grid without needing to be opened. Outer screws made of stainless steel. Base element for floor mounting made of aluminum die-cast, prepared through chemical surface treatment and coated with polyester powder. As an accessory, robust bases for floor mounting made of AISI 304 stainless steel sheet are available. They are recommended for all public facilities with high foot traffic. For installation in concrete, concrete anchor screws are available as accessories, compatible with the standard aluminum die-cast base and the accessory base HU (Heavy Use) made of stainless steel. Design by Silvia Paola Pennacchio.
Power supply | Electrical connection |
Height | 90 cm |
Dimmability | Not dimmable |
Additional functions | Motion sensor |
Protection type (IP code) | IP66 |
Item number | 32788937 |
Manufacturer | PiL |
Category | Outdoor lighting |
Manufacturer no. | 3114008 |
Release date | 7.4.2023 |
Colour | Silver |
Exact colour description | Stainless steel |
Material group | Metal |
Material | Stainless steel |
Application range | Outdoor |
Garden lighting type | Outdoor wall lamp |
Model series | 3114008 |
Dimmability | Not dimmable |
Additional functions | Motion sensor |
mounting style | Stand-alone |
Bulb type | LED |
Luminous flux | 1587 lm |
Light colour | White |
Colour temperature | 4000 K |
Colour rendering index | 89 |
Shielding angle | 80° |
Scope of illuminant | Bulb not included |
Number of lights | 1 x |
Max. power per lamp | 15 W |
Smart Home | Not compatible |
Designer | SILVIA PAOLA PENNACCHIO |
Power supply | Electrical connection |
input voltage | 240 V |
Power consumption | 15 W |
Protection type (IP code) | IP66 |
Protection class | Protection class II |
Country of origin | Italy |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Diameter | 15.50 cm |
Height | 90 cm |
