PiL 3116030
2077 lm, IP66Product details

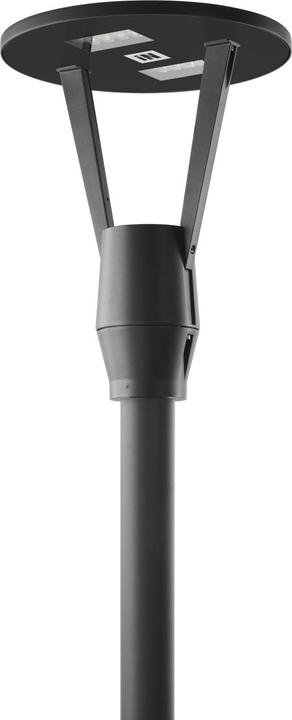

Outdoor mast light made of an aluminum die-cast housing coated in a grainy gray polymer powder finish, following a prior chemical surface treatment according to ISO 9227/12944 - ISO 9223 (C5). The mast mount is made of painted aluminum die-cast, suitable for masts with a diameter of 60 to 76 mm. The diffuser is made of extra clear, tempered safety flat glass. It features a highly elastic, abrasion-resistant silicone seal. The electrical connection includes an external IP66 quick-connect plug, allowing connection to the power grid without opening the light, made from PA66 with contacts made of silver-plated brass, for cables with a diameter of 9 to 12 mm. It meets the light pollution standards UNI 10819. External screws are made of stainless steel. Includes additional surge protection up to 10 kV (CM/DM). The ZHAGA versions are equipped with a ZHAGA SOCKET at the top of the light (UP position) and D4i drivers. They are designed to accommodate Radio Frequency Node solutions, twilight sensors, and other types of compatible sensors. Information on other color temperatures and color rendering index can be obtained from the manufacturer.
Power supply | Electrical connection |
Height | 59.80 cm |
Dimmability | Not dimmable |
Protection type (IP code) | IP66 |
Item number | 32788882 |
Manufacturer | PiL |
Category | Outdoor lighting |
Manufacturer no. | 3116030 |
Release date | 7.4.2023 |
Colour | Grey |
Exact colour description | Charcoal |
Material group | Metal |
Material | Aluminium |
Application range | Outdoor |
Garden lighting type | Outdoor wall lamp |
Model series | 3116030 |
Dimmability | Not dimmable |
Dimmer control | external controller |
mounting style | Top piece |
Bulb type | LED |
Luminous flux | 2077 lm |
Light colour | White |
Colour temperature | 3000 K |
Colour rendering index | 89 |
Scope of illuminant | incl. fixed light bulb |
Lamp service life | 100000 h |
Number of lights | 1 x |
Max. power per lamp | 18 W |
Smart Home | Not compatible |
Power supply | Electrical connection |
input voltage | 240 V |
Protection type (IP code) | IP66 |
Protection class | Protection class II |
Country of origin | Italy |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | LED pole light 3116030 |
Diameter | 45 cm |
Height | 59.80 cm |
Product Safety |
