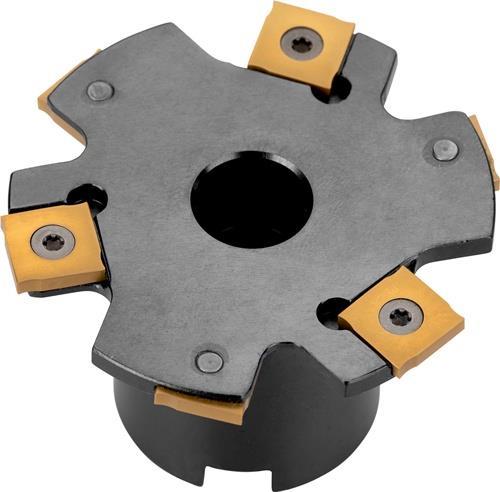

The ISO 63A03R-S90SN11N4 face mill is a highly advanced tool designed for precise milling operations. With a cutting diameter of 63 mm and a maximum depth of cut of 10.5 mm, this mill is ideal for deep groove milling. The positive/negative geometry allows for effective clamping techniques for up to six double-sided indexable inserts, enhancing flexibility and efficiency during machining. The mill features a 90° cutting angle and has a 16 mm connection hole according to DIN 8030-A, facilitating easy integration into various machines. With an axial rake angle of -0.5 degrees and a radial rake angle of 2.5 degrees, this mill optimizes chip removal and ensures a uniform surface quality. Its robust construction and thoughtful design make it a reliable choice for demanding milling applications.

• Positive/negative geometry for improved clamping technique
• Maximum speed of 13,900 RPM for high efficiency
• Effective cutting edge count of 3 for longer lifespan
• Shank according to DIN 8030 A for easy integration
• Optimized chip removal through special angle geometry.
