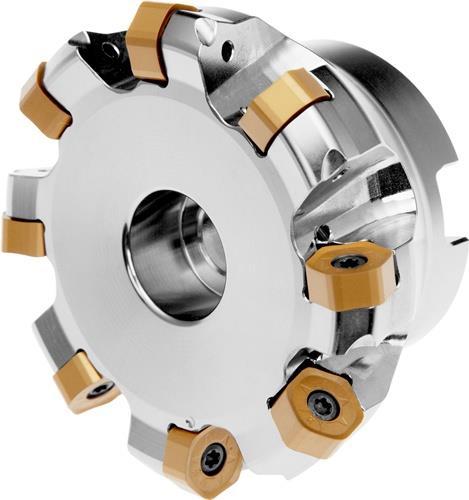

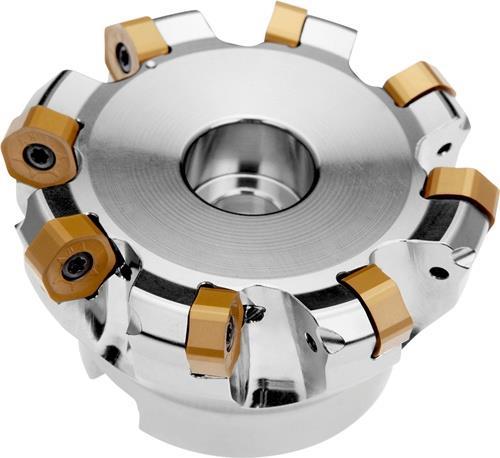

The ISO 125A10R-S45HN06C face mill is a highly advanced tool designed for precise milling applications. With a double negative geometry, this cutter allows for effective clamping of up to 10 double-sided indexable inserts, enhancing the tool's efficiency and lifespan. The cutter has a cutting diameter ranging from 125 to a maximum of 132.2 mm and is equipped with a 45° lead angle, enabling versatile use in various machining processes. The coolant channel drilling and uneven pitch contribute to optimal chip removal and cooling during operation. With a maximum cutting depth of 3.0 mm, this cutter is ideal for ramps, progressive plunging, and deburring milling. Its robust construction and precise manufacturing ensure high performance and reliability in industrial production.

• Double negative geometry for improved clamping technique
• Maximum speed of 7800 RPM for efficient milling
• Coolant channel drilling for optimal cooling during operation
• Suitable for ramps and progressive plunging
• Maximum cutting depth of 3.0 mm for versatile applications.
