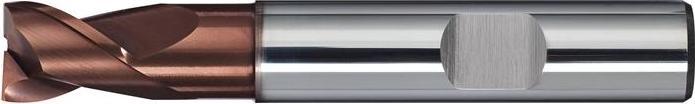

Promat Drill slot milling cutter DIN 6527 K Type N
Only 1 piece in stock at supplier
Product details
Drill slot milling cutter DIN 6527K TypeN D.20mm solid carbide TiAlN HB Z.2 short PROMAT : Solid carbide - universal ultra-fine grain - TiAlN-coated - DIN 6527 K - type N - double flute - short - 45° protective chamfer - centre cut - with straight shank to DIN 6535 HB - dynamic helix - right-hand cutting - neck relief - forfor low-vibration machining, suitable for roughing and finishing - due to newly developed geometry and coating universally applicable for milling in steel, cast steel, grey cast iron, malleable cast iron, Cr-Ni steels, non-ferrous metals, aluminium with silicon content and abrasive materials Further technical information: - Shank tolerance: h6 - Material suitability INOX: very well suited - Material suitability cast iron: very well suited - Material suitability steel: very well suited - Protective bevel: 0.3mm - Material suitability for special alloys: very well suited - Shank Ø: 20mm - Material suitability for non-ferrous metals: very well suited - Clearance: 19.5mm.
Diameter cutter | 20 millimetres |
Shaft diameter | 20 mm |
working length | 40 mm |
Suitable for | Aluminium, Metal, Steel |
Item number | 49570250 |
Material | TiAlN-coated |
Material group | Metal |
Suitable for | Aluminium, Metal, Steel |
Items per sales unit | 1 x |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Diameter cutter | 20 millimetres |
Shaft diameter | 20 mm |
Length | 92 mm |
working length | 40 mm |
