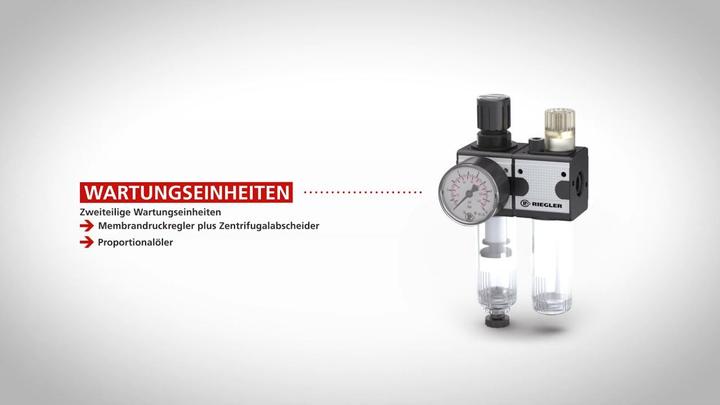

Riegler Pressure regulator MULTIFIX Thread mm 30.93 BG V G 1 ″ 0.5 - 10 bar 12500 l/min

Price in EUR including VAT
Ratings
BrandMore from Riegler
Delivered between Wed, 3.12. and Wed, 10.12.
Only 3 pieces in stock at supplier
free shipping

Product details

The MULTIFIX pressure regulator from Riegler is a highly advanced accessory for pneumatic tools that allows for precise pressure regulation. This pre-pressure-independent, self-regulating diaphragm pressure regulator is equipped with secondary venting and offers a pressure setting that can be locked by pressing the handwheel. The housing is made of zinc die-cast, while the spring cover is made of POM-brass. The pressure regulator is designed for an inlet pressure of up to 16 bar and can handle a flow rate of up to 12,500 l/min. With a pressure range of 0.5 to 10 bar, this product is ideal for various applications in pneumatic technology. The maximum medium and ambient temperature is 60 °C, allowing for versatile use in different environments.

  • Pre-pressure-independent, self-regulating diaphragm pressure regulator with secondary venting
  • Maximum inlet pressure of 16 bar
  • Pressure range of 0.5 to 10 bar
  • Flow value measurement at P1 = 8 bar, P2 = 6 bar, and pressure drop Δp = 1 bar
  • Materials: Zinc die-cast and POM-brass for durability.

Key specifications

type of tool
Pressure regulators
Working pressure
16 bar
Item number
22206114

General information

Manufacturer
Riegler
Category
Air tool accessories
Product Safety
Release date
15.9.2022

Material

Material group
Metal
Material
Zinc die-cast (aluminium at 25 mm (G 1"))

Pneumatic tool properties

type of tool
Pressure regulators
release torque
8 Nm
Tool holder size
G 1

Compressed air operation Features

Working pressure
16 bar
air demand
12500 l/min

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution
