Name: Three-jaw lathe chuck, steel, cylindrical centring mount, DIN 702-4, outer-⌀ A: 160mm
Brand: Röhm
SKU: 41809448
Price: 729 EUR
Availability: InStock

isSSR

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

Röhm

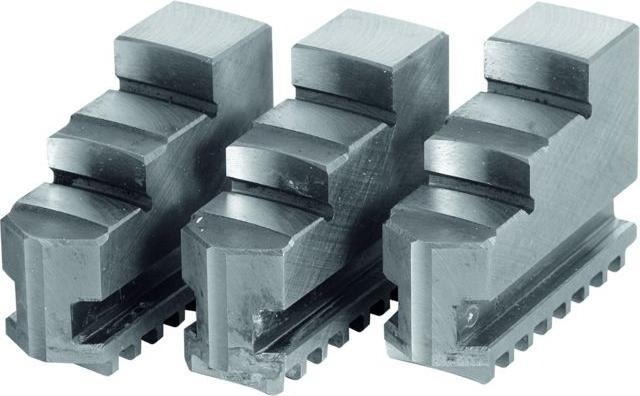

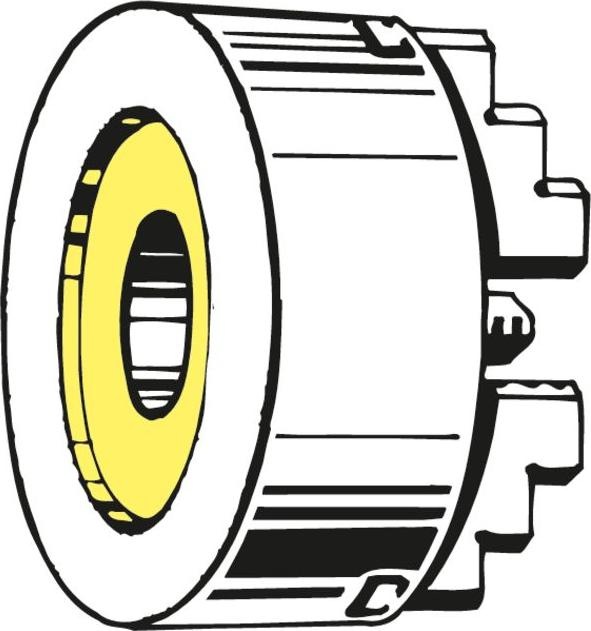

Short description: The DURO-M is a manually operated chuck with a flat spiral and through hole. It is primarily used on conventional lathes for the machining of turned parts. Technical features: Chuck body (as well as all other components) made of steel; centric clamping via flat spiral; flat spiral forged in the die and highly tempered, thread flanks ground on both sides; jaws ground for roundness in the chuck; factory-determined zero play as accuracy drive; the maximum permissible speed is set so that at maximum clamping force and when using the heaviest associated jaws, still 1/3 of the clamping force remains available as residual clamping force. The jaws must not protrude beyond the outer diameter of the chuck. The chucks must be in perfect condition. Furthermore, the regulations according to DIN 6386 Part 1 apply. Clamping force according to DIN 6350: The clamping force is the sum of all radial forces acting on the workpiece at rest. The specified clamping forces are guideline values. They apply to chucks in perfect condition that are lubricated with Röhm grease F80. Scope of delivery: Chuck, chuck key, jaws. Areas of application: Conventionally clamping horizontal and vertical lathes as well as milling machines, rotary tables, and dividing heads. Primarily in single or small batch production or repair workshops. Clamping of rotationally symmetrical parts for turning and milling operations. Advantages: High roundness accuracy up to 0.02; jaws are fundamentally blued; minimal interference contour; high force transmission; drip edge for coolant. Further information: The Duro-M Ø160 is a manually operated 3-jaw chuck with flat spiral and through hole Ø42, drilling and turning jaws, cylindrical mount (DIN 6350, Form A), ZA 125. It is primarily used on conventional lathes for the machining of turned parts.

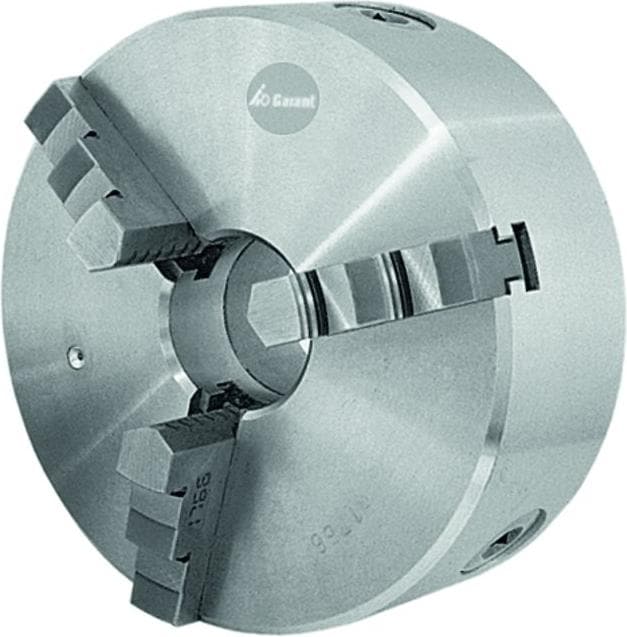

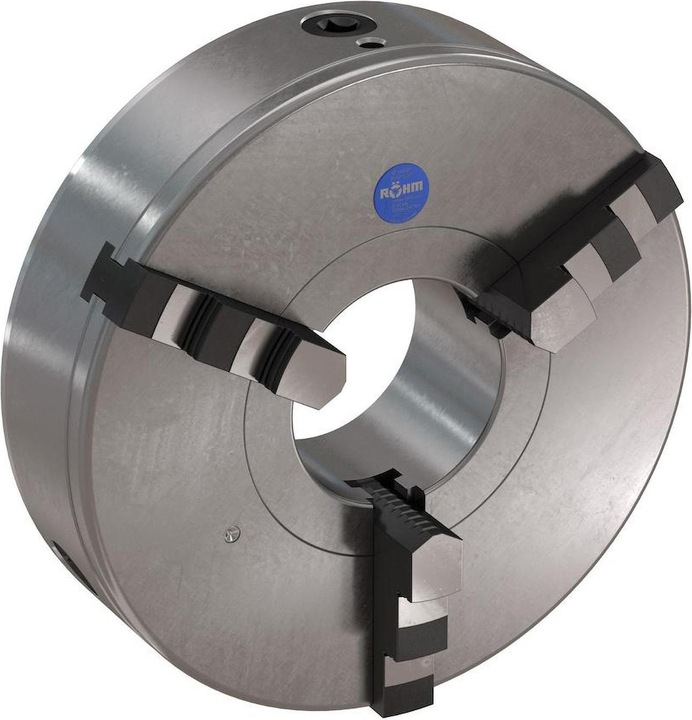

Actual product image Röhm Three-jaw lathe chuck, steel, cylindrical centring mount, DIN 702-4, outer-⌀ A: 160mm

Key specifications

Item number

Three-jaw lathe chuck, steel, cylindrical centring mount, DIN 702-4, outer-⌀ A: 160mm
