Mounting type: Surface mounting
Switch configuration: Normally closed
Switch current: 500 mA
Switch voltage: 100 V dc, 125 V ac
Switching distance: maximum 50 mm
Depth: 150 mm (switch), 75 mm (magnet)
Height: 15 mm (switch), 32 mm (magnet)
Width: 40 mm (switch), 60 mm (magnet)

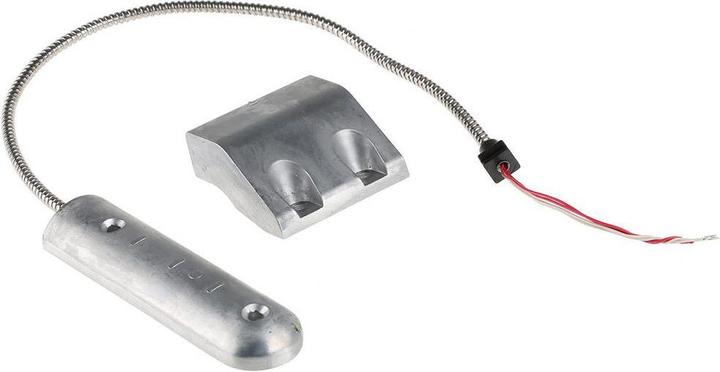

The switch should not be used for safety-critical applications. Safety contact and magnet for roller shutters from RS Pro, grade 2. Magnetic proximity switches are very tolerant to misalignment and are particularly suitable for environments contaminated by dust, dirt, and liquids, where contactless switching or hygiene requirements are important. This is a universal position and safety limit switch of industrial quality, fully encapsulated and housed in a robust polycarbonate enclosure. The integrated 3-meter cable is protected with strain relief and cable gland according to IP67. Normally closed contact form class 2. Maximum voltage: 125 V ac / 100 V dc. Tamper-proof control circuit, 0.5 A switching current, 50 mm operating distance, 100 mOhm contact resistance, temperature range: -40 to +50 °C, aluminum die-cast housing, protection against ingress of liquids according to IP67, 4-core reinforced cable, 500 mm.
