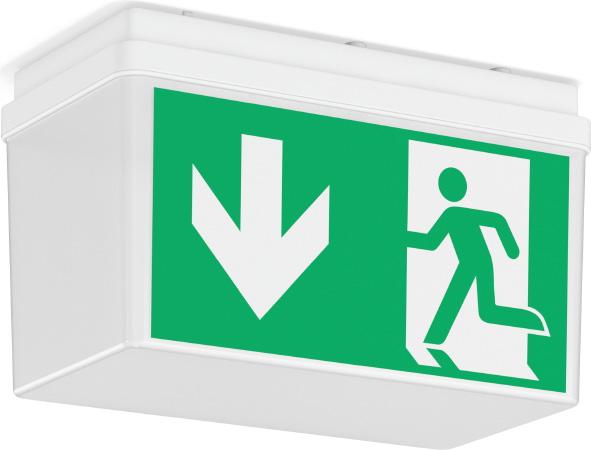

RZB LED safety light 672522.002.89

Manufacturer: RZB
Designation: LED safety light ZB, 865, white
Type: 672522.002.89
Mounting type: Wall surface-mounting/ceiling surface-mounting
Function: Escape route marking
Suitable for marking type: Other
With pictogram: Yes
Monitoring device: Monitoring module (centrally supplied system)
Switching type: Continuous/standby
With remote switch connection: No
With remote control: No
Power supply: Central (central battery)
Battery type: Other
Light source: LED not replaceable
With light source: Yes
Suitable for number of light sources: 1
Lampholder: Without
Number of luminaire heads: 1
Housing colour: White
Voltage type: AC/DC
Rated voltage: 220-240 V
Control gear: LED control gear current-controlled
Replaceable control gear: Yes
Light distributor: None
Max. number of luminaires Circuit-breaker B16: 27
Constant luminous flux control: No
Protection class (IP): IP54
Protection class (NEMA): Other
Protection class: II
Luminaire with limited surface temperature "D mark": No
Rated ambient temperature according to IEC62722-2-1: 25 °C
Colour temperature: 6500 K
Power factor: 0.83
Detection distance: 21 m
Width: 126 mm
Height/depth: 147 mm
Length: 241 mm
Type of wiring: Termination
Number of poles: 5
Conductor cross-section: 1.5 mm²
Type of connection: Plug-in connection

RZB LED emergency luminaire 672522.002.89: Further details
Luminaire for escape route marking. Fitting plastic diffuser plastic opal with 4 foils enclosed for escape route marking (according to ISO 7010). Suitable for ceiling or wall mounting. With accessories, also possible as pendant luminaire. Control gear integrated. For connection to safety power supply. With AC-Control monitoring module for Luxifair central battery systems. EAN: 4051859712084.
