RZB LED emergency luminaire 672533.002.04

Manufacturer: RZB
Designation: LED emergency luminaire EB 3h, 840, white
Type: 672533.002.04
Mounting type: Wall surface-mounted/ceiling surface-mounted
Function: Escape route lighting
With pictogram: No
Monitoring device: Monitoring module (centrally supplied system)
Switching type: Standby mode
With remote switch connection: No
With remote control: No
Power supply: Decentralised (single battery)
Battery type: NiMh
Illuminant: LED not replaceable
With illuminant: Yes
Suitable for number of illuminants: 1
Lampholder: Without
Number of luminaire heads: 1
Housing colour: White
Voltage type: AC
Rated voltage: 220-240 V
Control gear: ECG
Replaceable control gear: Yes
Max. number of luminaires Circuit breaker B16: 40
Max. number of luminaires Circuit breaker C16: 40
Constant luminous flux control: No
Protection class (IP): IP54
Protection class (NEMA): Other
Impact resistance: IK06
Protection class: II
Luminaire with limited surface temperature "D symbol": No
Rated ambient temperature according to IEC62722-2-1: 25-40 °C
Luminous flux in standby mode: 660 lm
Colour temperature: 4000 K
Power factor: 0.57
Rated operating time: 3 h
Width: 56 mm
Height/depth: 75 mm
Length: 336 mm
Wiring type: Suitable for through-wiring
Number of poles: 5
Conductor cross-section: 2.5 mm²
Connection type: Push-in connection

RZB LED safety light 672533.002.04: more details

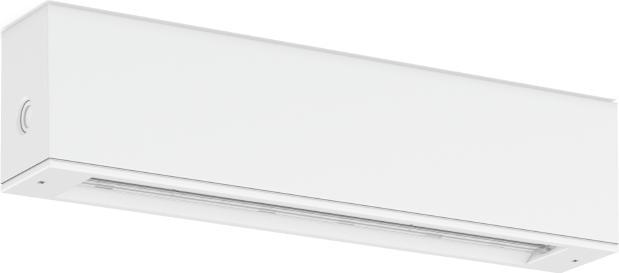

Rectangular surface-mounted luminaire in classic design for escape route lighting. Plastic housing (polycarbonate). Suitable for ceiling surface-mounting, chain or wire pendant, wall-mounting. Can also be used as a pendant luminaire with accessories. Integrated control gear. Single-battery system with automatic self-test and feedback to the RZB MultiDigit and MWEB monitoring systems.
