RZB Sensor 9503C2.000.700.000
Manufacturer: RZB
Designation: Sensor alu
Type: 9503C2.000.700.000
Colour: Aluminium

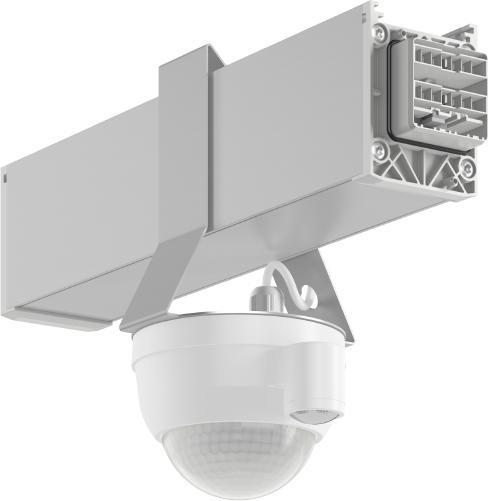

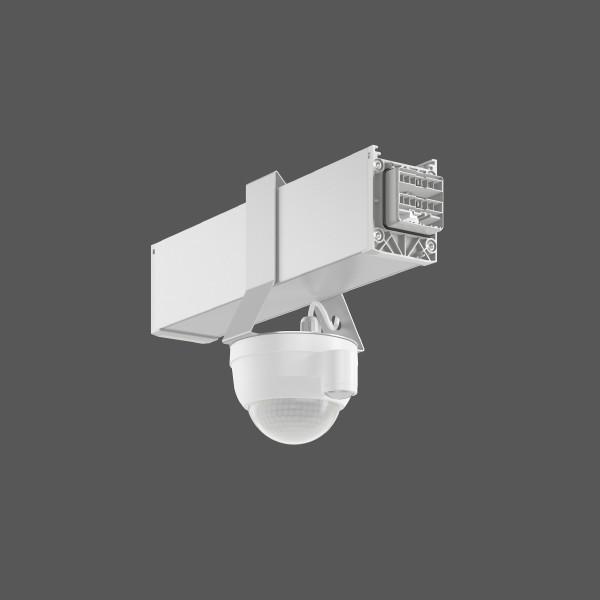

The RZB Sensor 9503C2.000.700.000 is a module that includes a passive infrared sensor (PIR) for detecting movement and brightness. It features simple and tool-free installation of system profiles using separate accessories for wire, chain, or ceiling suspension. The sensor can be plugged in without tools and secured with mechanical connectors. It has a 14-pin LINEDO plug (5 x 2.5 mm² / 9 x 1.5 mm²) for additional applications in light management or for the integration of emergency lighting.

The patented system allows for easy selection of phase adjustment from outside. It comes with a pre-assembled connection to the DALI line. The light and motion detector can be individually positioned ± 1 m along the length of the system profile. The housing is made of non-flammable, halogen-free plastic (polycarbonate).

Detection area: 30 x 19 m
Working range of light sensor: 10-2500 lx
Mounting height: 5-16 m
Slave version: For extending the detection area of a master. It sends a switching pulse to the master module when movement is detected, regardless of the ambient brightness, with a pulse interval of 2 or 9 seconds. Communication with the master is only possible with 14-pole wiring. Please order the power supply module, connection, and mounting accessories separately.
EAN: 4051859963752.
