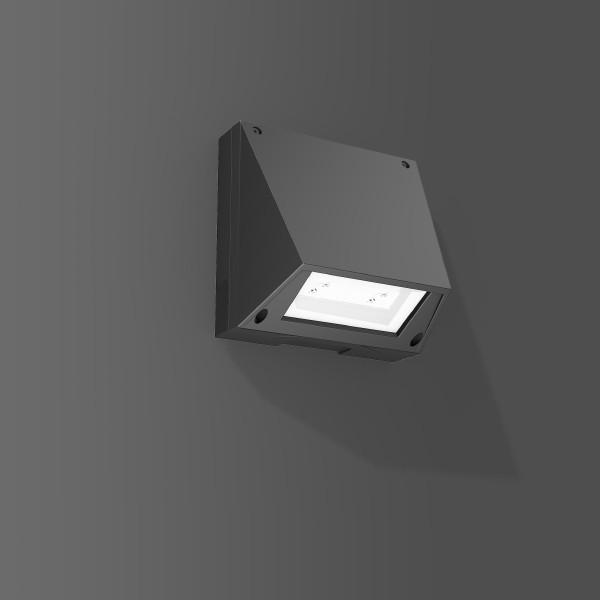

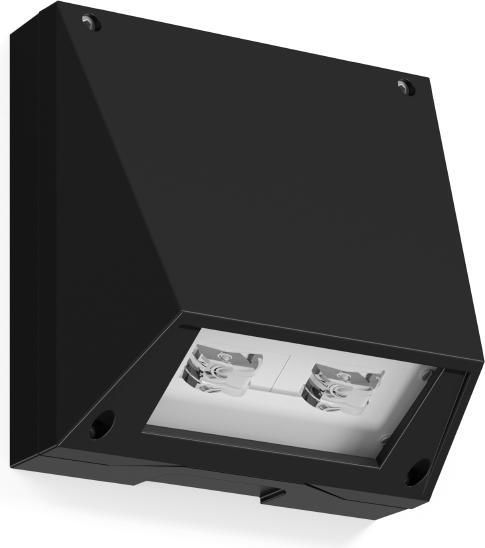

RZB LED emergency luminaire 672548.009.07

Manufacturer: RZB
Designation: LED emergency luminaire 765, EB 3h, grey
Type: 672548.009.07
Mounting type: Wall-mounted
Function: Escape route lighting
With pictogram: No
Monitoring device: Monitoring module (centrally supplied system)
Switching type: Standby mode
With remote switch connection: No
With remote control: No
Power supply: Decentralised (single battery)
Battery type: NiMh
Illuminant: LED not replaceable
With illuminant: No
Suitable for number of illuminants: 1
Lampholder: Without
Number of luminaire heads: 1
Housing material: Aluminium
Housing colour: Grey
Material of cover: Transparent glass
Voltage type: AC
Rated voltage: 230 V
Rated LED current at constant current: 27 mA
Control gear: LED control gear current-controlled
Replaceable control gear: Yes
Light distributor: Without constant luminous flux control: No
Protection class (IP): IP65
Protection class (NEMA): Other
Impact resistance: IK07
Protection class: I
Luminaire with limited surface temperature "D-mark": No
Rated ambient temperature according to IEC62722-2-1: 25 °C
Max. system power: 6.2 W
Light output: 6.2 W
System output: 6.2 W
Luminous flux in standby mode: 300 lm
Colour temperature: 6500 K
Rated operating time: 3 h
Width: 190 mm
Height/depth: 190 mm
Length: 117 mm
Type of wiring: Termination
Number of poles: 6
Conductor cross-section: 2.5 mm²
Connection type: Push-in connection

RZB LED emergency light 672548.009.07: More details
Wall light for escape route lighting. Powder-coated die-cast aluminium housing. With plastic lenses for escape route lighting. Integrated control gear. Single-battery system with automatic self-test and feedback via DALI bus exclusively to the RZB DALI monitoring system.
