Schabus Mini float switch
Price in EUR including VAT
Delivered between Fri, 22.5. and Wed, 27.5.
More than 10 pieces in stock at supplier
More than 10 pieces in stock at supplier
Free shipping starting at 30,–
Product details
The plastic float switch is reliable, maintenance-free, and wear-free, as well as easy to install. The switching contact closes at a certain water level and activates the input of the water detector. By turning the float body, the reverse switching function can also be achieved.
Technical Data:
- Electrical connection: Cable 2.5 m, 0.14 square millimeters
- Mechanical connection: Mounting bracket 300787
- Thread: M10
- Glide tube: Diameter in mm made of PPS
- Float: Diameter 22.5 mm made of PPS
- Switching function: Normally closed (NC), Normally open (NO)
- Switching voltage: 25 AC, 60 DC
- Switching current: max. 0.5 A
- Temperature range: -20 degrees to max. 80 degrees
- Protection class: IP 68
- Density of the medium: min. 0.7 g/ml
- Pressure: unpressurized
- Installation position: -30 degrees

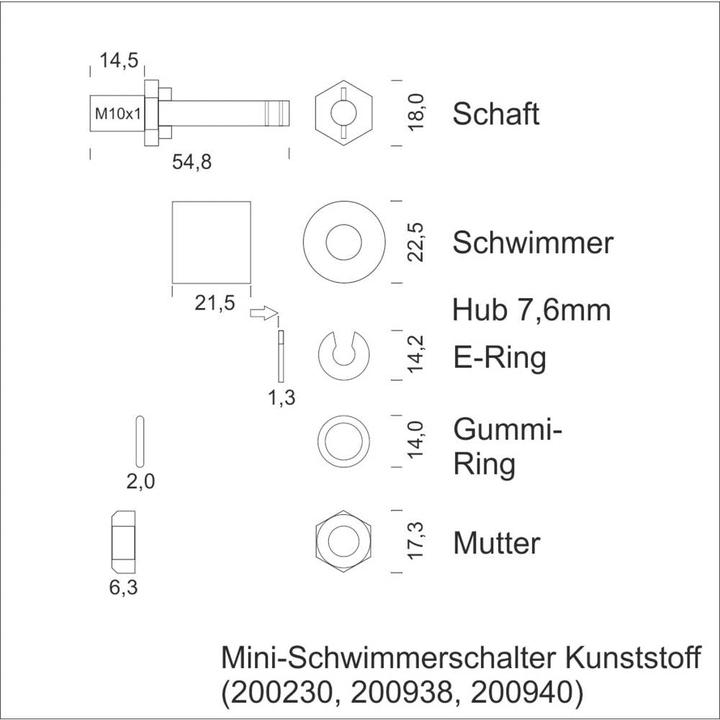

- Dimensions: L=55 mm, Diameter=23 mm

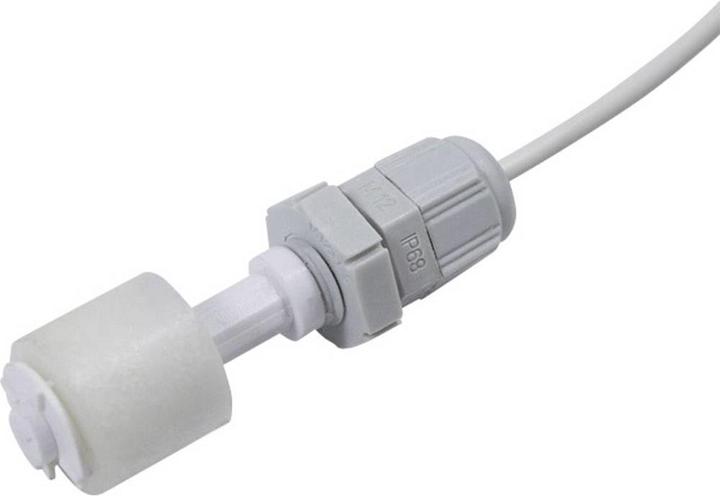

Mini float switch made of plastic.
Accessory type | Float switch |
Accessories for | Water pump |
Item number | 8478412 |
Manufacturer | Schabus |
Category | Irrigation accessories |
Manufacturer No. | 200940 |
Release date | 21.4.2018 |
Material group | Plastic |
Material | Plastic |
Accessory type | Float switch |
Accessories for | Water pump |
Power supply | Electrical connection |
Country of origin | Germany |
CO₂ emissions | 0,61 kg |
Climate contribution | EUR 0,12 |
Scope of delivery | Mini float switch 200940 |
Length | 0.06 m |
Width | 0.02 m |
Height | 0.02 m |
Product Safety |
Specifications may include unverified machine translations.
