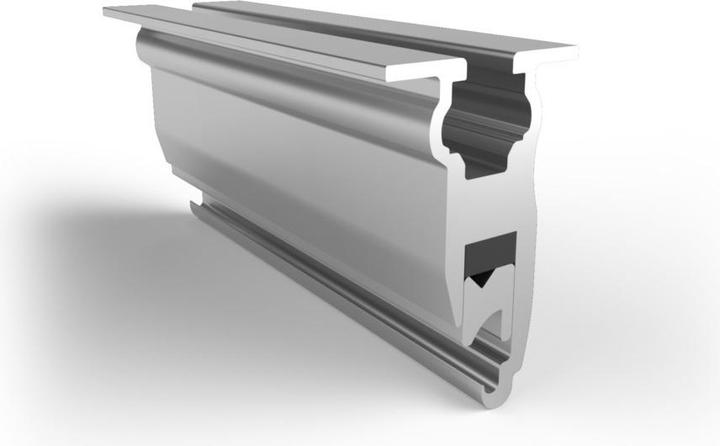

Schletter Solar Fold Clamp 504 AL KK 112001-010

Manufacturer: Schletter Solar
Designation: Fold Clamp 504 AL KK for Standing Seam Roof
Type: 112001-010
Material: Aluminum
Surface Protection: untreated
Suitable for Pitched Roof Installation: yes
Suitable for Flat Roof Installation: yes
Suitable for In-Roof Installation: no
Suitable for Facade Installation: no
Suitable for Ground Mount Installation: no
Suitable for Installation as Facade Element: no
Suitable for Installation as Roof Overhang/Sun Protection: no
Suitable for Canopy: Standing Seam Sheet
Includes Mounting Material: yes
Roof Penetration Required: no
Orientation: horizontal
Anchoring: clamping

The Fold Clamp 504 is particularly suitable for double standing seam roofs made of titanium zinc sheet. Possible dimensions of the seam fold: h = 11-13 mm, b1 = 4-6 mm, b2 = max. 3 mm. The Fold Clamp 504 was developed in collaboration with Rheinzink for use on double standing seam roofs made of titanium zinc sheet and has been approved by Rheinzink. Profiles mounted on the standing seam clamps must not exceed a length of approximately 3 m without thermal separation.
