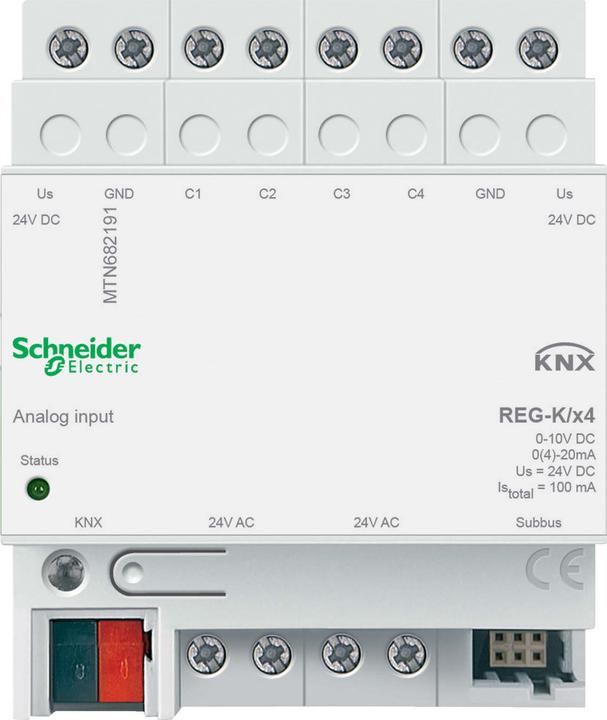

Schneider Electric Analog Input MTN682191

Manufacturer: Schneider Electric
Designation: Analog Input REG-K/4fold
Type: MTN682191
Bus System KNX: yes
Bus System KNX Wireless: no
Bus System Wireless Bus: no
Bus System LON: no
Bus System Powernet: no
Other Bus Systems: none
Mounting Type: REG
Width in Division Units: 4
Version: Basic Module
With LED Display: no
Number of Inputs: 4
With Bus Coupling: yes
Input Size Voltage: yes
Input Size Current: yes
Protection Class (IP): IP20

The analog input captures and processes analog sensor signals. Up to four freely combinable analog sensors can be connected. In conjunction with the analog input module REG/4fold, 8 analog inputs are available, with the connection made via the sub-bus. Evaluation and limit value processing occur within the analog input. It features wire break monitoring for the 4-20 mA inputs. Designed for mounting on TH35 DIN rails according to EN 60715. The bus connection is made via a bus connection terminal, and a data rail is not required. Auxiliary voltage: AC 24 V (+/-10%), Analog Inputs: 4, Current Interface: 0-20 mA, 4-20 mA, Voltage Interface: 0-1 V, 0-10 V, Outputs: DC 24 V, 100 mA. Wire break monitoring: 4-20 mA, Device Width: 4 TE, approximately 72 mm. Includes bus connection terminal and cable cover.
