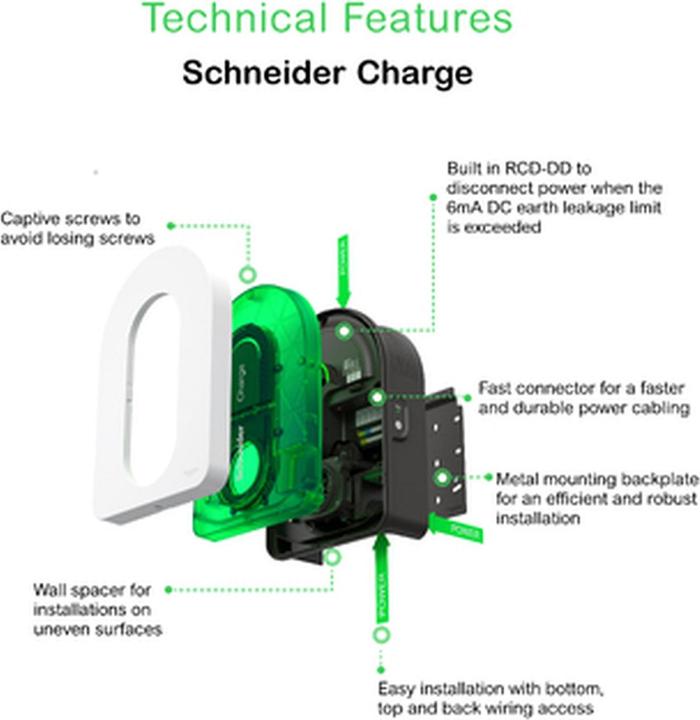

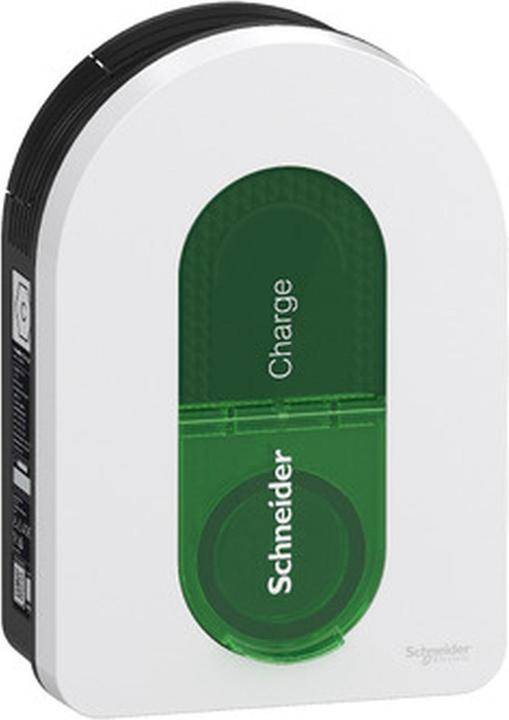

Schneider Charge 22 kW Wallbox with Type 2 socket for Mode 3 charging according to IEC 61851-1. Designed for easy installation without special tools and integration into smart homes using the Wiser app for control and monitoring of the wallbox. Suitable for home use, for indoor or outdoor installation (IP55 / IK10) on the wall. Three-phase with a maximum charging power of 22 kW, including 6 mA DC detection (enabling the use of an RCD Type A). Charging power regulation through the optional Schneider Charge Peak Controller via PLC, including pairing between the Peak Controller and Schneider Charge. Simple and elegant design with a front LED to indicate status and a side LED to monitor the connection status to the home network. Charging release via Plug’n’Charge or with the help of the Wiser app, and termination by the vehicle. Power connection three-phase (3P+N), 400 V / 32 A, suitable for TN-S, TT, and IT networks. Dimensions WxHxD: 244 mm x 352 mm x 117 mm, weight: 3.2 kg, operating temperature -30 to 45 °C, color white (RAL 9003) and green. Communication with the Wiser app or third-party providers via OCPP 1.6j. Connection to the home network via Ethernet RJ45 or Wi-Fi.

Sustainability
The Green Premium environmental label is Schneider Electric's commitment to delivering products with top-notch environmental performance. Green Premium promises compliance with the latest regulations, transparency regarding environmental impacts, as well as circular and low CO2 products. The guide for assessing product sustainability is a white paper that explains global environmental label standards and the interpretation of environmental declarations.
